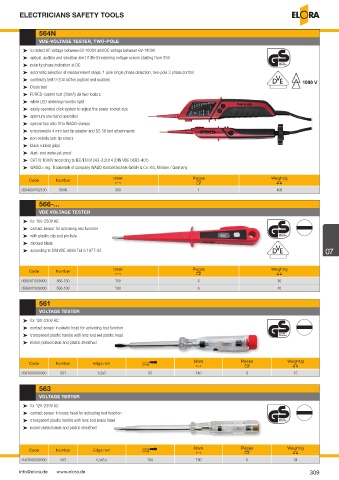

Page 309 - ELORA-Tool_Catalogue_E95

ELECTRICIANS SAFETY TOOLS

564N
VDE-VOLTAGE TESTER, TWO-POLE

³ to detect AC voltage between 6V-1000V and DC voltage between 6V-1400V
³ optical, audible and vibration alert if life-threatening voltage occurs starting from 35V
³ polarity phase indication at DC
³ automatic selection of measurement range, 1 pole single phase detection, two-pole 3 phase control
³ continuity test 0-200 kOhm (optical and audible)
³ Diode test
³ FI/RCD-control test (30mA) via two feelers
³ white LED metering monitor light
³ easily operated click system to adjust the power socket size
³ optimum one-hand operation
³ special tips also fit to WAGO-clamps
³ unscrewable 4 mm test tip adapter and GS 38 test attachments
³ non-volatile test tip covers
³ black rubber grips
³ dust- and water-jet-proof
³ CAT IV 1000V according to IEC/EN 61243-3:2014 (DIN VDE 0682-401)
³ WAGO= reg. Trademark of company WAGO Kontakttechnik GmbH & Co. KG, Minden / Germany

Code Number l/mm Pieces Weight/g
T U V
0564000102100 564N 300 1 408

566-...
VDE VOLTAGE TESTER
³ for 100-250V AC
³ contact sensor for activating test function
³ with plastic clip and pin hole
³ zincked blade
³ according to DIN VDE 0680 Teil 6 1977-02 07

Code Number l/mm Pieces Weight/g
T U V
0566001500000 566-150 150 6 30
0566001900000 566-190 190 6 40

561
VOLTAGE TESTER
³ for 120-230V AC
³ contact sensor in plastic head for activating test function
³ transparent plastic handle with lens and red plastic head
³ nickel-plated blade and plastic sheathed

Code Number Edge mm S l/mm Pieces Weight/g
V
T
U
0561000000000 561 0,3x3 65 140 6 15
563
VOLTAGE TESTER
³ for 120-230V AC
³ contact sensor in brass head for activating test function
³ transparent plastic handle with lens and brass head
³ nickel-plated blade and plastic sheathed

Code Number Edge mm S l/mm Pieces Weight/g
U
V
T
0563000000000 563 0,5x3,5 100 190 6 34
