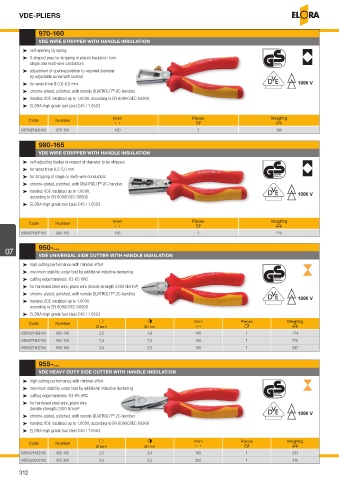

Page 312 - ELORA-Tool_Catalogue_E95

VDE-PLIERS

970-160
VDE WIRE STRIPPER WITH HANDLE INSULATION

³ self-opening by spring
³ V-shaped jaws for stripping of plastic insulation from
single and multi-wire conductors
³ adjustment of opening position to required diameter
by adjustable screw with locknut
³ for wires from Ø 0,8-6,0 mm
®
³ chrome-plated, polished, with nonslip QUATROLIT -2C-handles
³ handles VDE insulated up to 1.000V, according to EN 60900/IEC 60900
³ ELORA-high grade tool steel C45 / 1.0503

Code Number l/mm Pieces Weight/g
T U V
0970021602100 970-160 160 1 160

980-165
VDE WIRE STRIPPER WITH HANDLE INSULATION
³ self-adjusting blades in respect of diameter to be stripped
³ for wires from 0,5-5,0 mm
³ for stripping of single or multi-wire conductors
®
³ chrome-plated, polished, with QUATROLIT -2C-handles
³ handles VDE insulated up to 1.000V,
according to EN 60900/IEC 60900
³ ELORA-high grade tool steel C45 / 1.0503

Code Number l/mm Pieces Weight/g
T U V
0980021652100 980-165 165 1 216

950-...
07
VDE UNIVERSAL SIDE CUTTER WITH HANDLE INSULATION

³ high cutting performance with minimal effort
³ maximum stability under load by additional inductive hardening
³ cutting edge hardness: 63-65 HRC
³ for hardened steel wire, piano wire (tensile strength 2300 N/mm²)
³ chrome-plated, polished, with nonslip QUATROLIT -2C-handles
®
³ handles VDE insulated up to 1.000V,
according to EN 60900/IEC 60900
³ ELORA-high grade tool steel C45 / 1.0503
Code Number g h l/mm Pieces Weight/g
Ø mm Ø mm T U V
0950021452100 950-145 2,5 1,8 145 1 174
0950021602100 950-160 2,8 2,0 160 1 228
0950021802100 950-180 3,0 2,5 180 1 297

955-...
VDE HEAVY DUTY SIDE CUTTER WITH HANDLE INSULATION
³ high cutting performance with minimal effort
³ maximum stability under load by additional inductive hardening
³ cutting edge hardness: 63-65 HRC
³ for hardened steel wire, piano wire
(tensile strength 2300 N/mm²
®
³ chrome-plated, polished, with nonslip QUATROLIT -2C-handles
³ handles VDE insulated up to 1.000V, according to EN 60900/IEC 60900
³ ELORA-high grade tool steel C45 / 1.0503

Code Number g h l/mm Pieces Weight/g
Ø mm Ø mm T U V
0955021652100 955-165 2,5 2,0 160 1 233
0955022002100 955-200 3,0 2,5 200 1 310

312
