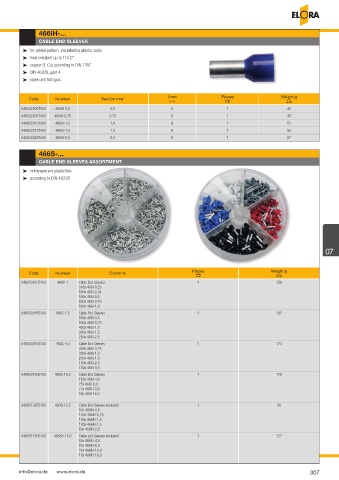

Page 307 - ELORA-Tool_Catalogue_E95

466IH-...
CABLE END SLEEVES

³ tin-plated pattern, insulated by plastic collar
³ heat resistant up to 110 C°
³ copper (E-Cu) according to DIN 1787
³ DIN 46228, part 4
³ sales unit 500 pcs.

Code Number Section mm² l/mm Pieces Weight/g
T U V
0466020051000 466IH-0,5 0,5 8 1 40
0466020071000 466IH-0,75 0,75 8 1 43
0466020101000 466IH-1,0 1,0 8 1 51
0466020151000 466IH-1,5 1,5 8 1 55
0466020251000 466IH-2,5 2,5 8 1 87

466S-...
CABLE END SLEEVES ASSORTMENT
³ in transparent plastic box
³ according to DIN 46228

07

Code Number Contents Pieces Weight/g
U V
0466500105100 466S-1 Cable End Sleeves 1 159
500x 466I-0,25
500x 466I-0,34
500x 466I-0,5
500x 466I-0,75
500x 466I-1,0
0466500255100 466S-2,5 Cable End Sleeves 1 162
500x 466I-0,5
500x 466I-0,75
400x 466I-1,0
300x 466I-1,5
200x 466I-2,5
0466500405100 466S-4,0 Cable End Sleeves 1 173
400x 466I-0,75
300x 466I-1,0
200x 466I-1,5
150x 466I-2,5
100x 466I-4,0
0466501605100 466S-16,0 Cable End Sleeves 1 178
150x 466I-4,0
75x 466I-6,0
75x 466I-10,0
50x 466I-16,0
0466510255100 466SH-2,5 Cable End Sleeves insulated 1 96
50x 466IH-0,5
100x 466IH-0,75
100x 466IH-1,0
100x 466IH-1,5
50x 466IH-2,5
0466511605100 466SH-16,0 Cable End Sleeves insulated 1 127
50x 466IH-4,0
20x 466IH-6,0
20x 466IH-10,0
10x 466IH-16,0
