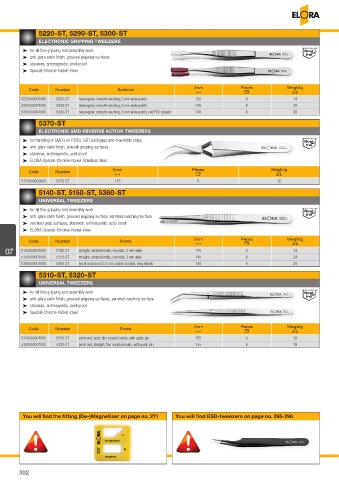

Page 302 - ELORA-Tool_Catalogue_E95

5220-ST, 5290-ST, 5300-ST
ELECTRONIC GRIPPING TWEEZERS

³ for all fine gripping and assembly work
³ anti-glare satin finish, grooved gripping surfaces
³ stainless, antimagnetic, acid-proof
³ Special-Chrome-Nickel-steel

Code Number Surfaces l/mm Pieces Weight/g
T U V
5220000001000 5220-ST rectangular, smooth reaching, 5 mm wide points 120 6 14
5290000001000 5290-ST rectangular, smooth reaching, 5 mm wide points 145 6 28
5300000001000 5300-ST rectangular, smooth reaching, 5 mm wide points, red PVC coated 145 6 28
5370-ST
ELECTRONIC SMD REVERSE ACTION TWEEZERS
³ for handling of SMD´s on PCB´s, SOT packages and monolithic chips
³ anti-glare satin finish, smooth gripping surfaces
³ stainless, antimagnetic, acid-proof
³ ELORA-Special-Chrome-Nickel-Stainless steel
Code Number l/mm Pieces Weight/g
T U V
5370000000000 5370-ST 115 6 12
5140-ST, 5150-ST, 5360-ST
UNIVERSAL TWEEZERS

³ for all fine gripping and assembly work
³ anti-glare satin finish, grooved gripping surface, serrated reaching surface
³ serrated grab surfaces, stainless, antimagnetic, acid-proof
³ ELORA-Special-Chrome-Nickel-steel
Code Number Points l/mm Pieces Weight/g
T U V
07 5140000001000 5140-ST straight, serated inside, rounded, 3 mm wide 120 6 14
5150000001000 5150-ST straight, serated inside, rounded, 3 mm wide 145 6 24
5360000001000 5360-ST small and round 2,5 mm, inside serated, long handle 140 6 20
5310-ST, 5320-ST
UNIVERSAL TWEEZERS

³ for all fine gripping and assembly work
³ anti-glare satin finish, grooved gripping surfaces, serrated reaching surface
³ stainless, antimagnetic, acid-proof
³ Special-Chrome-Nickel-steel

Code Number Points l/mm Pieces Weight/g
T U V
5310000001000 5310-ST point end, bent, fine serated inside, with guide pin 155 6 18
5320000001000 5320-ST point end, straight, fine serated inside, with guide pin 155 6 18

You will find the fitting (De-)Magnetizer on page no. 271 You will find ESD-tweezers on page no. 295-296
