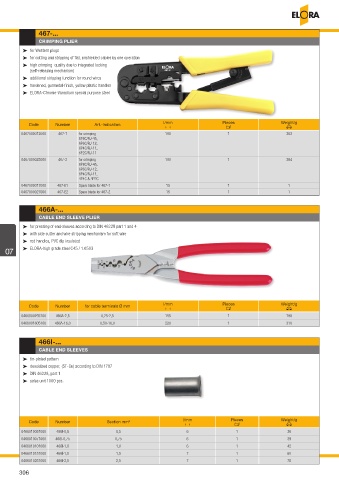

Page 306 - ELORA-Tool_Catalogue_E95

467-...
CRIMPING PLIER

³ for Western plugs
³ for cutting and stripping of flat, unshielded cables by one operation
³ high crimping quality due to integrated locking
(self-releasing mechanism)
³ additional stripping function for round wires
³ hardened, gunmetal-finish, yellow plastic handles
³ ELORA-Chrome-Vanadium special purpose steel

Code Number Art.-Indication l/mm Pieces Weight/g
T U V
0467000012000 467-1 for crimping 190 1 363
8P8C/RJ-45,
6P6C/RJ-12,
6P4C/RJ-11,
6P2C/RJ-11
0467000022000 467-2 for crimping 190 1 384
8P8C/RJ-45,
6P6C/RJ-12,
6P4C/RJ-11,
4P4C & 4P2C
0467000017000 467-E1 Spare blade for 467-1 15 1 1
0467000027000 467-E2 Spare blade for 467-2 15 1 1

466A-...
CABLE END SLEEVE PLIER
³ for pressing of end-sleeves according to DIN 46228 part 1 and 4
³ with side cutter and wire stripping mechanism for soft wire
³ red handles, PVC dip insulated
07 ³ ELORA-high grade steel C45 / 1.0503

Code Number for cable terminals Ø mm l/mm Pieces Weight/g
T U V
0466000255100 466A-2,5 0,25-2,5 155 1 198
0466001605100 466A-16,0 0,50-16,0 220 1 310

466I-...
CABLE END SLEEVES
³ tin-plated pattern
³ deoxidized copper, (SF-Cu) according to DIN 1787
³ DIN 46228, part 1
³ sales unit 1000 pcs.

Code Number Section mm² l/mm Pieces Weight/g
T U V
0466010051000 466I-0,5 0,5 6 1 36
0466010071000 466I-0,75 0,75 6 1 39
0466010101000 466I-1,0 1,0 6 1 42
0466010151000 466I-1,5 1,5 7 1 60
0466010251000 466I-2,5 2,5 7 1 78

306
