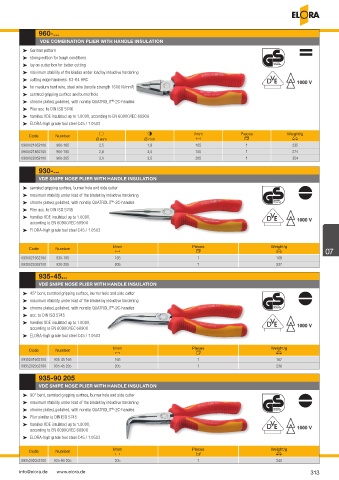

Page 313 - ELORA-Tool_Catalogue_E95

960-...
VDE COMBINATION PLIER WITH HANDLE INSULATION

³ German pattern
³ strong edition for tough conditions
³ lay on cutter box for better cutting
³ maximum stability of the blades under load by inductive hardening
³ cutting edge hardness: 63-64 HRC
³ for medium hard wire, steel wire (tensile strength 1600 N/mm²)
³ serrated gripping surface and burner hole
³ chrome plated, polished, with nonslip QUATROLIT -2C-handles
®
³ Plier acc. to DIN ISO 5746
³ handles VDE insulated up to 1.000V, according to EN 60900/IEC 60900
³ ELORA-high grade tool steel C45 / 1.0503
Code Number g h l/mm Pieces Weight/g
Ø mm Ø mm T U V
0960021652100 960-165 2,5 1,8 165 1 235
0960021852100 960-185 2,8 2,0 185 1 274
0960022052100 960-205 3,0 2,5 205 1 354
930-...
VDE SNIPE NOSE PLIER WITH HANDLE INSULATION

³ serrated gripping surface, burner hole and side cutter
³ maximum stability under load of the blades by inductive hardening
®
³ chrome plated, polished, with nonslip QUATROLIT -2C-handles
³ Plier acc. to DIN ISO 5745
³ handles VDE insulated up to 1.000V,
according to EN 60900/IEC 60900
³ ELORA-high grade tool steel C45 / 1.0503

Code Number l/mm Pieces Weight/g
T U V 07
0930021652100 930-165 165 1 168
0930022052100 930-205 205 1 237
935-45...
VDE SNIPE NOSE PLIER WITH HANDLE INSULATION
³ 45° bent, serrated gripping surface, burner hole and side cutter
³ maximum stability under load of the blades by inductive hardening
®
³ chrome plated, polished, with nonslip QUATROLIT -2C-handles
³ acc. to DIN ISO 5745
³ handles VDE insulated up to 1.000V,
according to EN 60900/IEC 60900
³ ELORA-high grade tool steel C45 / 1.0503

Code Number l/mm Pieces Weight/g
T U V
0935201652100 935-45 165 165 1 167
0935202052100 935-45 205 205 1 238
935-90 205
VDE SNIPE NOSE PLIER WITH HANDLE INSULATION
³ 90° bent, serrated gripping surface, burner hole and side cutter
³ maximum stability under load of the blades by inductive hardening
®
³ chrome plated, polished, with nonslip QUATROLIT -2C-handles
³ Plier similar to DIN ISO 5745
³ handles VDE insulated up to 1.000V,
according to EN 60900/IEC 60900
³ ELORA-high grade tool steel C45 / 1.0503

Code Number l/mm Pieces Weight/g
T U V
0935292052100 935-90 205 205 1 240
