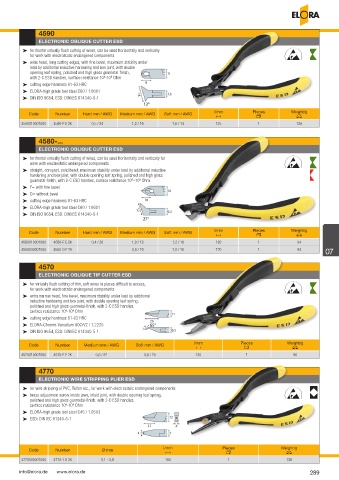

4590
ELECTRONIC OBLIQUE CUTTER ESD

³ for frontal virtually flush cutting of wires, can be used horizontally and vertically
for work with electrostatic endangered components
³ wide head, long cutting edges, with fine bevel, maximum stability under
load by additional inductive hardening and box joint, with double
opening leaf spring, polished and high gloss gunmetal-finish,
with 2-C ESD handles, surface resistance 10 -10 Ohm
9
6
³ cutting edge hardness 61-63 HRC
³ ELORA-high grade tool steel C60 / 1.0601
³ DIN ISO 9654, ESD: DIN IEC 614340-5-1

Code Number Hard mm / AWG Medium mm / AWG Soft mm / AWG l/mm Pieces Weight/g
T U V
4590010001000 4590-F E 2K 0,5 / 24 1,2 / 16 1,6 / 14 125 1 126

4580-...
ELECTRONIC OBLIQUE CUTTER ESD
³ for frontal virtually flush cutting of wires, can be used horizontally and vertically for
work with electrostatic endangered components
³ straight, compact, solid head, maximum stability under load by additional inductive
hardening and box joint, with double opening leaf spring, polished and high gloss
6
gunmetal-finish, with 2-C ESD handles, surface resistance 10 –10 Ohm
9
³ F= with fine bevel
³ O= without bevel
³ cutting edge hardness 61-63 HRC
³ ELORA-high grade tool steel C60 / 1.0601
³ DIN ISO 9654, ESD: DIN IEC 614340-5-1

Code Number Hard mm / AWG Medium mm / AWG Soft mm / AWG l/mm Pieces Weight/g
T U V
4580010001000 4580-F E 2K 0,4 / 26 1,0 / 18 1,2 / 16 120 1 94
4580030001000 4580-O E 2K - 0,8 / 20 1,0 / 18 120 1 94 07

4570
ELECTRONIC OBLIQUE TIP CUTTER ESD
³ for virtually flush cutting of thin, soft wires in places difficult to access,
for work with electrostatic endangered components
³ extra narrow head, fine bevel, maximum stability under load by additional
inductive hardening and box joint, with double opening leaf spring,
polished and high gloss gunmetal-finish, with 2-C ESD handles,
6
9
surface resistance 10 -10 Ohm
³ cutting edge hardness 61-63 HRC
³ ELORA-Chrome-Vanadium 80CrV2 / 1.2235
³ DIN ISO 9654, ESD: DIN IEC 614340-5-1
Code Number Medium mm / AWG Soft mm / AWG l/mm Pieces Weight/g
T U V
4570010001000 4570-F E 2K 0,6 / 22 0,8 / 20 130 1 96

4770
ELECTRONIC WIRE STRIPPING PLIER ESD

³ for wire stripping of PVC, Teflon etc., for work with electrostatic endangered components
³ brass adjustment screw inside jaws, inlaid joint, with double opening leaf spring,
polished and high gloss gunmetal-finish, with 2-C ESD handles,
9
6
surface resistance 10 -10 Ohm
³ ELORA-high grade tool steel C45 / 1.0503
³ ESD: DIN IEC 61340-5-1

Code Number Ø mm l/mm Pieces Weight/g
T U V
4770000001000 4770-1 E 2K 0,1 - 0,8 150 1 128

info@elora.de www.elora.de 289
