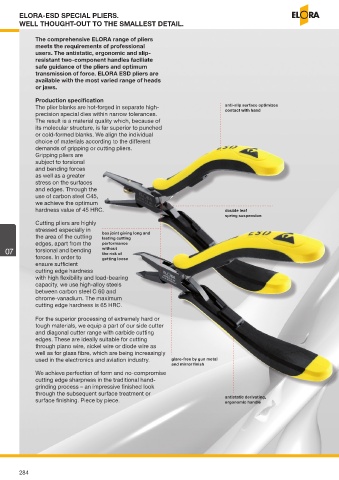

Page 284 - ELORA-Tool_Catalogue_E95

ELORA-ESD SPECIAL PLIERS.
WELL THOUGHT-OUT TO THE SMALLEST DETAIL.

The comprehensive ELORA range of pliers
meets the requirements of professional
users. The antistatic, ergonomic and slip-
resistant two-component handles faciliate
safe guidance of the pliers and optimum
transmission of force. ELORA ESD pliers are
available with the most varied range of heads
or jaws.

Production specification
The plier blanks are hot-forged in separate high- anti-slip surface optimizes
precision special dies within narrow tolerances. contact with hand
The result is a material quality which, because of
its molecular structure, is far superior to punched
or cold-formed blanks. We align the individual
choice of materials according to the different
demands of gripping or cutting pliers.
Gripping pliers are
subject to torsional
and bending forces
as well as a greater
stress on the surfaces
and edges. Through the
use of carbon steel C45,
we achieve the optimum
hardness value of 45 HRC. double leaf
spring suspension
Cutting pliers are highly
stressed especially in
the area of the cutting box joint giving long and
lasting cutting
edges, apart from the performance
07 torsional and bending without
the risk of
forces. In order to getting loose
ensure sufficient
cutting edge hardness
with high flexibility and load-bearing
capacity, we use high-alloy steels
between carbon steel C 60 and
chrome-vanadium. The maximum
cutting edge hardness is 65 HRC.

For the superior processing of extremely hard or
tough materials, we equip a part of our side cutter
and diagonal cutter range with carbide cutting
edges. These are ideally suitable for cutting
through piano wire, nickel wire or diode wire as
well as for glass fibre, which are being increasingly
used in the electronics and aviation industry. glare-free by gun metal
and mirror finish
We achieve perfection of form and no-compromise
cutting edge sharpness in the traditional hand-
grinding process – an impressive finished look
through the subsequent surface treatment or
surface finishing. Piece by piece. antistatic derivating,
ergonomic handle

284
