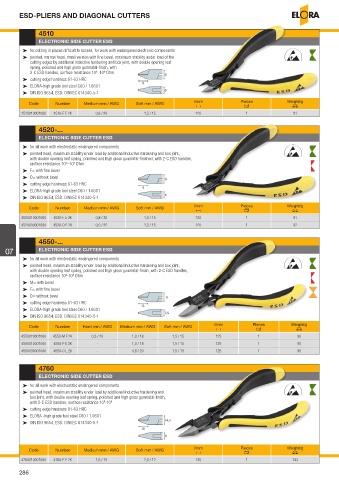

Page 286 - ELORA-Tool_Catalogue_E95

ESD-PLIERS AND DIAGONAL CUTTERS

4510
ELECTRONIC SIDE CUTTER ESD

³ for cutting in places difficult to access, for work with endangered electronic components
³ pointed, narrow head, small version with fine bevel, maximum stability under load of the
cutting edges by additional inductive hardening and box joint, with double opening leaf
spring, polished and high gloss gunmetal-finish, with
2-C ESD handles, surface resistance 10 –10 Ohm
9
6
³ cutting edge hardness 61-63 HRC
³ ELORA-high grade tool steel C60 / 1.0601
³ DIN ISO 9654, ESD: DIN IEC 614340-5-1
Code Number Medium mm / AWG Soft mm / AWG l/mm Pieces Weight/g
T U V
4510010001000 4510-F E 2K 0,8 / 20 1,5 / 15 120 1 91

4520-...
ELECTRONIC SIDE CUTTER ESD
³ for all work with electrostatic endangered components
³ pointed head, maximum stability under load by additional inductive hardening and box joint,
with double opening leaf spring, polished and high gloss gunmetal-finished, with 2-C ESD handles,
surface resistance 10 –10 Ohm
9
6
³ F= with fine bevel
³ O= without bevel
³ cutting edge hardness 61-63 HRC
³ ELORA-high grade tool steel C60 / 1.0601
³ DIN ISO 9654, ESD: DIN IEC 614340-5-1
Code Number Medium mm / AWG Soft mm / AWG l/mm Pieces Weight/g
T U V
4520010001000 4520-F E 2K 0,8 / 20 1,5 / 15 120 1 91
4520030001000 4520-O E 2K 0,6 / 22 1,5 / 15 120 1 92

4550-...
07 ELECTRONIC SIDE CUTTER ESD
³ for all work with electrostatic endangered components
³ pointed head, maximum stability under load by additional inductive hardening and box joint,
with double opening leaf spring, polished and high gloss gunmetal-finish, with 2-C ESD handles,
surface resistance 10 -10 Ohm
6
9
³ M= with bevel
³ F= with fine bevel
³ O= without bevel
³ cutting edge hardness 61-63 HRC
³ ELORA-high grade tool steel C60 / 1.0601
³ DIN ISO 9654, ESD: DIN IEC 614340-5-1
Code Number Hard mm / AWG Medium mm / AWG Soft mm / AWG l/mm Pieces Weight/g
T U V
4550020001000 4550-M E 2K 0,3 / 28 1,0 / 18 1,5 / 15 125 1 96
4550010001000 4550-F E 2K - 1,0 / 18 1,5 / 15 125 1 95
4550030001000 4550-O E 2K - 0,8 / 20 1,5 / 15 125 1 95

4760
ELECTRONIC SIDE CUTTER ESD
³ for all work with electrostatic endangered components
³ pointed head, maximum stability under load by additional inductive hardening and
box joint, with double opening leaf spring, polished and high gloss gunmetal-finish,
with 2-C ESD handles, surface resistance 10 -10 9
6
³ cutting edge hardness 61-63 HRC
³ ELORA -high grade tool steel C60 / 1.0601
³ DIN ISO 9654, ESD: DIN IEC 614340-5-1

Code Number Medium mm / AWG Soft mm / AWG l/mm Pieces Weight/g
T U V
4760010001000 4760-F E 2K 1,5 / 15 2,0 / 12 135 1 143
