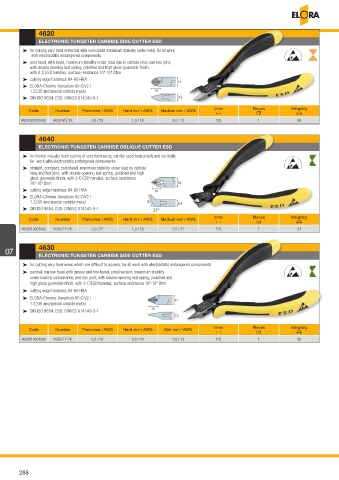

4620
ELECTRONIC TUNGSTEN CARBIDE SIDE CUTTER ESD

³ for cutting very hard materials with coincident maximum stability under load, for all work
with electrostatic endangered components
³ oval head, with bevel, maximum stability under load due to carbide inlay and box joint,
with double opening leaf spring, polished and high gloss gunmetal-finish,
with 2-C ESD handles, surface resistance 10 -10 Ohm
9
6
³ cutting edge hardness 84-86 HRA
³ ELORA-Chrome-Vanadium 80 CrV2 /
1.2235 and special carbide metal
³ DIN ISO 9654, ESD: DIN IEC 614340-5-1

Code Number Piano mm / AWG Hard mm / AWG Medium mm / AWG l/mm Pieces Weight/g
T U V
4620020001000 4620-M E 2K 0,6 / 22 1,0 / 18 2,0 / 12 125 1 98

4640
ELECTRONIC TUNGSTEN CARBIDE OBLIQUE CUTTER ESD
³ for frontal virtually flush cutting of very hard wires, can be used horizontally and vertically
for work with electrostatic endangered components
³ straight, compact, solid head, maximum stability under load by carbide
inlay and box joint, with double opening leaf spring, polished and high
gloss gunmetal-finish, with 2-C ESD handles, surface resistance
10 -10 Ohm
6
9
³ cutting edge hardness 84-86 HRA
³ ELORA-Chrome-Vanadium 80 CrV2 /
1.2235 and special carbide metal
³ DIN ISO 9654, ESD: DIN IEC 614340-5-1
Code Number Piano mm / AWG Hard mm / AWG Medium mm / AWG l/mm Pieces Weight/g
T U V
4640010001000 4640-F E 2K 0,6 / 22 1,0 / 18 2,0 / 12 120 1 93

4630
07
ELECTRONIC TUNGSTEN CARBIDE SIDE CUTTER ESD

³ for cutting very hard wires which are difficult to access, for all work with electrostatic endangered components
³ pointed, narrow head with groove and fine bevel, small version, maximum stability
under load by carbide inlay and box joint, with double opening leaf spring, polished and
high gloss gunmetal-finish, with 2-C ESD handles, surface resistance 10 -10 Ohm
6
9
³ cutting edge hardness 84-86 HRA
³ ELORA-Chrome-Vanadium 80 CrV2 /
1.2235 and special carbide metal
³ DIN ISO 9654, ESD: DIN IEC 614340-5-1

Code Number Piano mm / AWG Hard mm / AWG Soft mm / AWG l/mm Pieces Weight/g
T U V
4630010001000 4630-F E 2K 0,4 / 26 0,8 / 20 1,8 / 13 125 1 99

288
