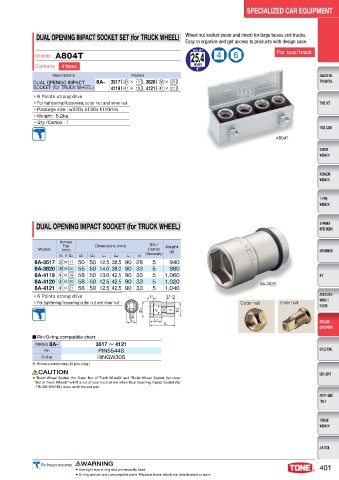

DUAL OPENING IMPACT SOCKET SET (for TRUCK WHEEL) Wheel nut socket (outer and inner) for large buses and trucks.
Easy to organize and get access to products with design case.

Models A804T 25.4 4 6 For bus/track

Contents 4 Items mm
1
Descriptions Models
DUAL OPENING IMPACT 8A- 3517（ 35 × 17 ）, 3820（ 38 × 20 ）
SOCKET (for TRUCK WHEEL) 4119（ 41 × 19 ）, 4121（ 41 × 21 ）
● 6 Points strong drive
● For tightening/loosening outer nut and inner nut
● Package size : w310x d130x h110mm
● Weight : 5.2kg
● Qty./Carton : 1

A804T

DUAL OPENING IMPACT SOCKET (for TRUCK WHEEL)

Across
Flat Dimensions (mm) Qty./ Weight
Models (mm) Carton (g)
S1 ×S2 D1 D2 L1 L2 L d (Generally)
8A-3517 35 × 17 50 50 12.5 38.5 90 28 5 940
8A-3820 38 × 20 55 50 14.0 38.0 90 33 5 980
8A-4119 41 × 19 58 50 13.0 42.5 90 33 5 1,060
8A-4120 41 × 20 58 50 12.5 42.5 90 33 5 1,020 8A-3820
8A-4121 41 × 21 58 50 12.5 42.5 90 33 5 1,040
● 6 Points strong drive
● For tightening/loosening outer nut and inner nut 0VUFS OVU *OOFS OVU

■ Pin/O-ring compatible chart
Models 8A- 3517 ～ 4121
Pin PIN5544S
O-ring RINGW30S
※ Within a plastic bag (10 pcs./pkg.)
CAUTION
● “Budd Wheel Socket (for Outer Nut of Truck Wheel)” and “Budd Wheel Socket (for Inner
Nut of Truck Wheel)” will fit a nut of your truck wheel when Dual Opening Impact Socket (for
TRUCK WHEEL) does not fit the nut well.

'PS JNQBDU XSFODIFT WARNING
● Use right size o-ring and pin securely fixed. 401
● O-ring and pin are consumptive parts. Replace those which are deteriorated or worn.
