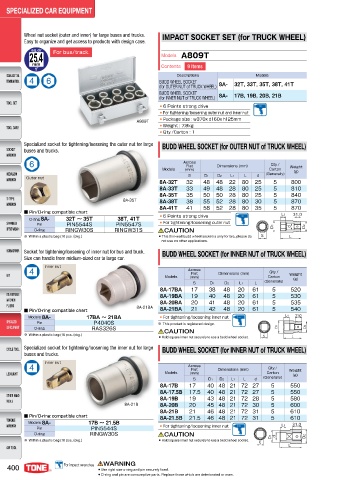

Wheel nut socket (outer and inner) for large buses and trucks. IMPACT SOCKET SET (for TRUCK WHEEL)
Easy to organize and get access to products with design case.

25.4 For bus/track Models A809T
mm Contents 9 Items
1
Descriptions Models
4 6 BUDD WHEEL SOCKET
(for OUTER NUT of TRUCK WHEEL) 8A- 32T, 33T, 35T, 38T, 41T
BUDD WHEEL SOCKET
(for INNER NUT of TRUCK WHEEL) 8A- 17B, 19B, 20B, 21B
● 6 Points strong drive
● For tightening/loosening outer nut and inner nut
● Package size : w370x d160x h125mm
A809T
● Weight : 7.8kg
● Qty./Carton : 1

Specialized socket for tightening/loosening the outer nut for large BUDD WHEEL SOCKET (for OUTER NUT of TRUCK WHEEL)
buses and trucks.

6 Across Dimensions (mm) Qty./
Flat
Models (mm) Carton Weight
(g)
S D1 D2 L1 L d (Generally)
0VUFS OVU
8A-32T 32 48 48 22 80 25 5 800
8A-33T 33 49 48 28 80 25 5 810
8A-35T 35 50 50 28 80 25 5 840
8A-35T 8A-38T 38 55 52 28 80 30 5 870
8A-41T 41 58 52 28 80 35 5 870
■ Pin/O-ring compatible chart
O-ring 8A- 32T ～ 35T 38T, 41T ● 6 Points strong drive
Pin PIN5544S PIN5547S ● For tightening/loosening outer nut
O-ring RINGW30S RINGW31S CAUTION
※ Within a plastic bag (10 pcs./pkg.) ● This thin-wall budd wheel socket is only for tire, please do
not use on other applications.
Socket for tightening/loosening of inner nut for bus and truck. BUDD WHEEL SOCKET (for INNER NUT of TRUCK WHEEL)
Size can handle from midium-sized car to large car.
*OOFS OVU
4 Across Dimensions (mm) Qty./
Flat
Models (mm) Carton Weight
(g)
S D1 D2 L1 L (Generally)
8A-17BA 17 38 48 20 61 5 520
8A-19BA 19 40 48 20 61 5 530
8A-20BA 20 41 48 20 61 5 535
8A-21BA
■ Pin/O-ring compatible chart 8A-21BA 21 42 48 20 61 5 540
Models 8A- 17BA ～ 21BA ● For tightening/loosening inner nut
Pin P4040S ※ This product is registered design.
O-ring RAS326S CAUTION
※ Within a plastic bag (10 pcs./pkg.)
● Hold square inner nut securely to use a budd wheel socket.
Specialized socket for tightening/loosening the inner nut for large BUDD WHEEL SOCKET (for INNER NUT of TRUCK WHEEL)
buses and trucks.
*OOFS OVU
4 Across Dimensions (mm) Qty./
Flat
Models (mm) Carton Weight
(g)
S D1 D2 L1 L d (Generally)
8A-17B 17 40 48 21 72 27 5 550
8A-17.5B 17.5 40 48 21 72 27 5 550
8A-19B 19 43 48 21 72 28 5 580
8A-21B 8A-20B 20 45 48 21 72 30 5 600
8A-21B 21 46 48 21 72 31 5 610
■ Pin/O-ring compatible chart 8A-21.5B 21.5 46 48 21 72 31 5 610
Models 8A- 17B ～ 21.5B
Pin PIN5544S ● For tightening/loosening inner nut
O-ring RINGW30S CAUTION
※ Within a plastic bag (10 pcs./pkg.) ● Hold square inner nut securely to use a budd wheel socket.

WARNING
400 'PS JNQBDU XSFODIFT ● Use right size o-ring and pin securely fixed.
● O-ring and pin are consumptive parts. Replace those which are deteriorated or worn.
