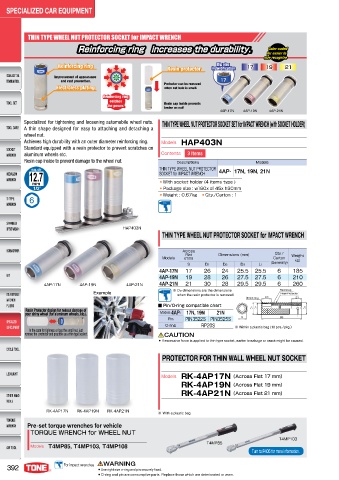

THIN TYPE WHEEL NUT PROTECTOR SOCKET for IMPACT WRENCH
Reinforcing ring increases the durability. Color-coded
Reinforcing ring increases the durability.
Color-coded
for easier to
for easier to
size recognize
size recognize
#JH TJ[F
Reinforcing ring #JH TJ[F ̍ ̓ ̍̕ ̎̍
Reinforcing ring
Reinforcing ring
̍̕
̎̍
̍̓
JOEFOUJGJDBUJPO
Resin protector JOEFOUJGJDBUJPO
Resin protector
Resin protector
Improvement of appearance
and rust prevention. Protector can be removed
Electroless plating
Electroless plating
Electroless plating when nut hole is small.
Reinforcing ring
Reinforcing ring
catches
catches
the power. Resin cap inside prevents
the power.
bruise on nut!
4AP-17N 4AP-19N 4AP-21N
Specialized for tightening and loosening automobile wheel nuts. THIN TYPE WHEEL NUT PROTECTOR SOCKET SET for IMPACT WRENCH (with SOCKET HOLDER)
A thin shape designed for easy to attaching and detaching a
wheel nut.
Achieves high durability with an outer diameter reinforcing ring. Models HAP403N
Standard equipped with a resin protector to prevent scratches on
aluminum wheels etc. Contents 3 Items
Resin cap inside to prevent damage to the wheel nut. Descriptions Models
THIN TYPE WHEEL NUT PROTECTOR 4AP- 17N, 19N, 21N
12.7 SOCKET for IMPACT WRENCH
mm ● With socket holder (4 items type )
1/2 ● Package size : w160x d145x h30mm
● Weight : 0.67kg ● Qty./Carton : 1
6
HAP403N
THIN TYPE WHEEL NUT PROTECTOR SOCKET for IMPACT WRENCH
Across
Flat Dimensions (mm) Qty./ Weight
Models (mm) Carton (g)
S D1 D2 D3 L1 (Generally)
4AP-17N 17 26 24 25.5 25.5 6 185
4AP-19N 19 28 26 27.5 27.5 6 210
4AP-17N 4AP-19N 4AP-21N 4AP-21N 21 30 28 29.5 29.5 6 260
Example ※ D2 dimensions are the dimensions ResinCap
ResinProtector
when the resin protector is removed.
Shrink ring
■ Pin/O-ring compatible chart
Resin Protector design for reduce damage of Models 4AP- 17N, 19N 21N
your shiny wheel (for aluminum wheels, etc.).
Pin PIN3522S PIN3525S
O-ring RP20S ※ Within a plastic bag (10 pcs./pkg.)
In the case for tighness or loss the small nut, just
remove the protector and practible as a thin type socket. CAUTION
● If excessive force is applied to thin type socket, earlier breakage or crack might be caused.
PROTECTOR FOR THIN WALL WHEEL NUT SOCKET

Models RK-4AP17N （Across Flat 17 mm）
RK-4AP19N （Across Flat 19 mm）
RK-4AP21N （Across Flat 21 mm）

RK-4AP17N RK-4AP19N RK-4AP21N
※ With a plastic bag
Pre-set torque wrenches for vehicle
TORQUE WRENCH for WHEEL NUT
T4MP103
Models T4MP85, T4MP103, T4MP108 T4MP85
Turn to P405 for more information.

WARNING
392 'PS JNQBDU XSFODIFT ● Use right size o-ring and pin securely fixed.
● O-ring and pin are consumptive parts. Replace those which are deteriorated or worn.
