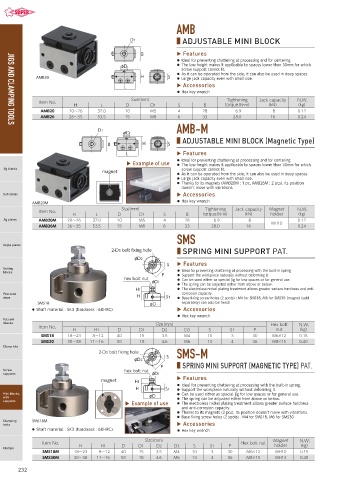

Page 234 - 世霸SuperToolVol.6

AMB

D1 ■ ADJUSTABLE MINI BLOCK

B Features
● Ideal for preventing chattering at processing and for centering.
φD ● The low height makes it applicable to spaces lower than 30mm for which
screw support cannot fit.
● As it can be operated from the side, it can also be used in deep spaces.
AMB20 H S ● Large jack capacity even with small size.
Accessories
L
● Hex key wrench
Size （mm） Tightening Jack capacity N.W.
Item No.
H L D D1 S B torque （N・m） （kN） （kg）
AMB20 20〜26 37.0 10 M5 4 28 6.9 8 0.12
AMB26 26〜35 53.5 15 M8 6 33 28.0 16 0.24
AMB-M
JIGS AND CLAMPING TOOLS
D1
φD
■ ADJUSTABLE MINI BLOCK (Magnetic Type)
B H S
L Features
● Ideal for preventing chattering at processing and for centering.
Example of use ● The low height makes it applicable to spaces lower than 30mm for which
Jig blocks screw support cannot fit.
magnet
● As it can be operated from the side, it can also be used in deep spaces.
● Large jack capacity even with small size.
● Thanks to its magnets (AMB20M : 1 pc, AMB26M : 2 pcs), its position
doesn’t move with vibrations.
Sub tables Accessories
● Hex key wrench
AMB20M
Size （mm） Tightening Jack capacity Magnet N.W.
Item No.
H L D D1 S B torque （N・m） （kN） holder （kg）
Jig plates AMB20M 20〜26 37.0 10 M5 4 28 6.9 8 0.12
MH10
AMB26M 26〜35 53.5 15 M8 6 33 28.0 16 0.24
SMS
Angle plates
2-D3 bolt fixing hole ■ SPRING MINI SUPPORT PAT.
φD2
S Features
Setting
blocks ● Ideal for preventing chattering at processing with the built-in spring.
P ● Support the workpiece naturally without deforming it.
hex bolt nut ● Can be used either as special jig for low spaces or for general use.
φD1
● The spring can be adjusted either from above or below.
H1 ● The electroless nickel plating treatment allows greater surface hardness and anti-
Precision corrosion capacity.
vises H S1 ● Base fixing screw holes (2 spots) : M4 for SMS18, M6 for SMS30 〔magnet (sold
SMS18 φD separately) can also be fixed〕
● Shaft material : SK3 (hardness : 60HRC) Accessories
● Hex key wrench
Vacuum
chucks Size （mm） Hex bolt N.W.
Item No.
H H1 D D1 D2 D3 S S1 P nut （kg）
SMS18 18〜23 8〜12 40 15 3.5 M4 10 3 30 M6×12 0.15
SMS30 30〜38 11〜16 50 18 4.6 M6 13 4 36 M8×15 0.40
Clamp kits
S SMS-M
2-D3 bolt fixing hole
φD2
P ■ SPRING MINI SUPPORT (MAGNETIC TYPE) PAT.
Screw hex bolt nut
supports φD1
magnet H1 Features
● Ideal for preventing chattering at processing with the built-in spring.
H S1 ● Support the workpiece naturally without deforming it.
Mini blocks, ● Can be used either as special jig for low spaces or for general use.
mini φD ● The spring can be adjusted either from above or below.
supports
Example of use ● The electroless nickel plating treatment allows greater surface hardness
and anti-corrosion capacity.
● Thanks to its magnets (2 pcs), its position doesn’t move with vibrations.
● Base fixing screw holes (2 spots) : M4 for SMS18, M6 for SMS30
Clamping SMS18M
tools Accessories
● Shaft material : SK3 (hardness : 60HRC) ● Hex key wrench
Size （mm） Magnet N.W.
Item No. Hex bolt nut （kg）
Clamps H H1 D D1 D2 D3 S S1 P holder
SMS18M 18〜23 8〜12 40 15 3.5 M4 10 3 30 M6×12 MH10 0.15
SMS30M 30〜38 11〜16 50 18 4.6 M6 13 4 36 M8×15 MH13 0.40
