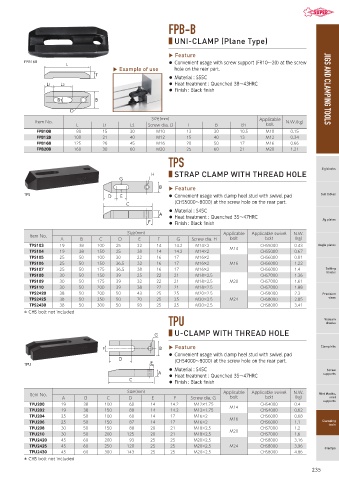

Page 237 - 世霸SuperToolVol.6

FPB-B

■ UNI-CLAMP (Plane Type)

Feature
FPB16B ● Convenient usage with screw support (FR10～20) at the screw
L
Example of use hole on the rear part.
T
● Material : S55C
● Heat treatment : Quenched 38～43HRC
L1 L2
● Finish : Black finish JIGS AND CLAMPING TOOLS
B1 B
D
Size （mm） Applicable
Item No. N.W. （kg）
L L1 L2 Screw dia. D T B B1 bolt
FPB10B 80 15 30 M10 13 30 10.5 M10 0.15
FPB12B 100 21 40 M12 15 40 13 M12 0.34
FPB16B 125 26 45 M16 20 50 17 M16 0.66
FPB20B 160 30 60 M20 25 60 21 M20 1.21
TPS

■ STRAP CLAMP WITH THREAD HOLE Jig blocks
H
G
B Feature
TPS ● Convenient usage with clamp heel stud with swivel pad Sub tables
D E
(CHS5000～8000) at the screw hole on the rear part.
C
● Material : S45C
A
● Heat treatment : Quenched 35～47HRC Jig plates
F ● Finish : Black finish
Size （mm） Applicable Applicable swivel N.W.
Item No.
A B C D E F G Screw dia. H bolt bolt （kg）
TPS103 19 38 100 25 22 14 14.2 M14×2 CHS5000 0.43 Angle plates
M14
TPS104 19 38 150 25 38 14 14.2 M14×2 CHS5000 0.67
TPS105 25 50 100 30 22 16 17 M16×2 CHS6000 0.81
TPS106 25 50 150 36.5 32 16 17 M16×2 M16 CHS6000 1.22
TPS107 25 50 175 36.5 38 16 17 M16×2 CHS6000 1.4 Setting
blocks
TPS108 30 50 150 39 25 22 21 M18×2.5 CHS7000 1.36
TPS109 30 50 175 39 32 22 21 M18×2.5 M20 CHS7000 1.61
TPS110 30 50 200 39 38 22 21 M18×2.5 CHS7000 1.88
TPS2420 38 50 200 50 43 25 25 M20×2.5 CHS8000 2.3 Precision
vises
TPS2425 38 50 250 50 70 25 25 M20×2.5 M24 CHS8000 2.85
TPS2430 38 50 300 50 93 25 25 M20×2.5 CHS8000 3.41
＊ CHS bolt not included
TPU Vacuum
chucks
■ U-CLAMP WITH THREAD HOLE
G
Feature Clamp kits
F B
● Convenient usage with clamp heel stud with swivel pad
D
E (CHS4000～8000) at the screw hole on the rear part.
TPU
● Material : S45C Screw
A supports
● Heat treatment : Quenched 35～47HRC
C
● Finish : Black finish
Size （mm） Applicable Applicable swivel N.W.
Item No. Mini blocks,
A B C D E F Screw dia. G bolt bolt （kg） mini
supports
TPU200 19 38 100 60 14 14.2 M12×1.75 CHS4000 0.4
M14
TPU202 19 38 150 88 14 14.2 M12×1.75 CHS4000 0.62
TPU204 25 50 100 60 14 17 M16×2 CHS6000 0.68
M16
TPU206 25 50 150 87 14 17 M16×2 CHS6000 1.1 Clamping
tools
TPU208 30 50 150 88 20 21 M18×2.5 CHS7000 1.2
M20
TPU210 30 50 200 125 20 21 M18×2.5 CHS7000 1.6
TPU2420 45 60 200 93 25 25 M20×2.5 CHS8000 3.16
TPU2425 45 60 250 120 25 25 M20×2.5 M24 CHS8000 3.96 Clamps
TPU2430 45 60 300 143 25 25 M20×2.5 CHS8000 4.86
＊ CHS bolt not included
