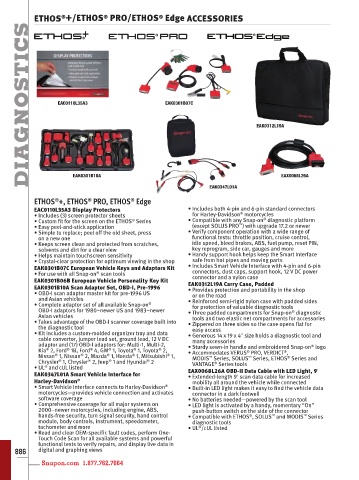

ETHOS +/ETHOS PRO/ETHOS Edge ACCESSORIES
DIAGNOSTICS

EAC0110L35A3 EAK0301B07C

EAK0312L19A

EAK0301B10A EAX0068L26A
EAK0347L01A

®
®
®
ETHOS +, ETHOS PRO, ETHOS Edge
EAC0110L35A3 Display Protectors • Includes both 4-pin and 6-pin standard connectors
®
• Includes (3) screen protector sheets for Harley-Davidson motorcycles
®
®
• Custom fit for the screen on the ETHOS Series • Compatible with any Snap-on diagnostic platform
™
• Easy peel-and-stick application (except SOLUS PRO ) with upgrade 17.2 or newer
• Simple to replace; peel off the old sheet, press • Verify component operation with a wide range of
on a new one functional tests: throttle position, cruise control,
• Keeps screen clean and protected from scratches, idle speed, bleed brakes, ABS, fuel pump, reset PIN,
solvents and dirt for a clear view key reprogram, side car, gauges and more
• Helps maintain touchscreen sensitivity • Handy support hook helps keep the Smart Interface
• Crystal-clear protection for optimum viewing in the shop safe from hot pipes and moving parts
EAK0301B07C European Vehicle Keys and Adaptors Kit • Includes Smart Vehicle Interface with 4-pin and 6-pin
®
• For use with all Snap-on scan tools connectors, dust caps, support hook, 12 V DC power
EAK0301B06B European Vehicle Personality Key Kit connector and a nylon case
EAK0301B10A Scan Adaptor Set, OBD-I, Pre-1996 EAK0312L19A Carry Case, Padded
• Provides protection and portability in the shop
• OBD-I scan adaptor master kit for pre-1996 US or on the road
and Asian vehicles • Reinforced semi-rigid nylon case with padded sides
®
• Complete adaptor set of all available Snap-on for protection of valuable diagnostic tools
OBD-I adaptors for 1980–newer US and 1983–newer • Three padded compartments for Snap-on diagnostic
®
Asian vehicles tools and two elastic net compartments for accessories
• Takes advantage of the OBD-I scanner coverage built into • Zippered on three sides so the case opens flat for
the diagnostic tool easy access
• Kit includes a custom-molded organizer tray and data • Generous 14 x 19 x 4ʺ size holds a diagnostic tool and
cable convertor, jumper lead set, ground lead, 12 V DC many accessories
adaptor and (17) OBD-I adaptors for: Multi-1, Multi-2, • Sturdy sewn-in handle and embroidered Snap-on logo
®
®
®
®
Kia 2, Ford 1B, Ford 4, GM 1, Toyota 1, Toyota 2, • Accommodates VERUS PRO, VERDICT ,
®
®
®
®
®
®
®
®
Nissan 1, Nissan 2, Mazda 1, Honda 1, Mitsubishi 1, MODIS Series, SOLUS Series, ETHOS Series and
®
®
™
®
™
®
®
Chrysler 1, Chrysler 2, Jeep 1 and Hyundai 2 VANTAGE Series tools
®
®
®
• UL and cUL listed EAX0068L26A OBD-II Data Cable with LED Light, 9ʹ
®
EAK0347L01A Smart Vehicle Interface for • Extended-length 9ʹ scan data cable for increased
Harley-Davidson ® mobility all around the vehicle while connected
®
• Smart Vehicle Interface connects to Harley-Davidson • Built-in LED light makes it easy to find the vehicle data
motorcycles—provides vehicle connection and activates connector in a dark footwell
software coverage • No batteries needed—powered by the scan tool
• Comprehensive coverage for all major systems on • LED light is activated by a handy, momentary “On”
2000–newer motorcycles, including engine, ABS, push-button switch on the side of the connector
hands-free security, turn signal security, hand control • Compatible with ETHOS , SOLUS and MODIS Series
™
™
®
module, body controls, instrument, speedometer, diagnostic tools
tachometer and more • UL /cUL listed
®
• Read and clear OEM-specific fault codes, perform One-
Touch Code Scan for all available systems and powerful
functional tests to verify repairs, and display live data in
886 digital and graphing views
