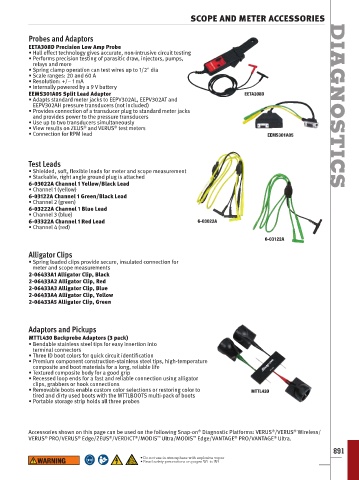

SCOPE AND METER ACCESSORIES

Probes and Adaptors
EETA308D Precision Low Amp Probe
• Hall effect technology gives accurate, non-intrusive circuit testing
• Performs precision testing of parasitic draw, injectors, pumps,
relays and more
• Spring clamp operation can test wires up to 1/2ʺ dia
• Scale ranges: 20 and 60 A
• Resolution: +/– 1 mA
• Internally powered by a 9 V battery
EEMS301A05 Split Lead Adaptor EETA308D
• Adapts standard meter jacks to EEPV302AL, EEPV302AT and
EEPV302AH pressure transducers (not included) DIAGNOSTICS
• Provides connection of a transducer plug to standard meter jacks
and provides power to the pressure transducers
• Use up to two transducers simultaneously
• View results on ZEUS and VERUS test meters
®
®
• Connection for RPM lead EEMS301A05

Test Leads
• Shielded, soft, flexible leads for meter and scope measurement
• Stackable, right angle ground plug is attached
6-03022A Channel 1 Yellow/Black Lead
• Channel 1 (yellow)
6-03122A Channel 1 Green/Black Lead
• Channel 2 (green)
6-03222A Channel 1 Blue Lead
• Channel 3 (blue)
6-03322A Channel 1 Red Lead 6-03022A
• Channel 4 (red)
6-03122A

Alligator Clips
• Spring loaded clips provide secure, insulated connection for
meter and scope measurements
2-06433A1 Alligator Clip, Black
2-06433A2 Alligator Clip, Red
2-06433A3 Alligator Clip, Blue
2-06433A4 Alligator Clip, Yellow
2-06433A5 Alligator Clip, Green

Adaptors and Pickups
MTTL430 Backprobe Adaptors (3 pack)
• Bendable stainless steel tips for easy insertion into
terminal connectors
• Three ID boot colors for quick circuit identification
• Premium component construction-stainless steel tips, high-temperature
composite and boot materials for a long, reliable life
• Textured composite body for a good grip
• Recessed loop ends for a fast and reliable connection using alligator
clips, grabbers or hook connections
• Removable boots enable custom color selections or restoring color to MTTL430
tired and dirty used boots with the MTTLBOOTS multi-pack of boots
• Portable storage strip holds all three probes

Accessories shown on this page can be used on the following Snap-on Diagnostic Platforms: VERUS /VERUS Wireless/
®
®
®
®
™
®
™
®
®
VERUS PRO/VERUS Edge/ZEUS /VERDICT /MODIS Ultra/MODIS Edge/VANTAGE PRO/VANTAGE Ultra.
®
®
891
• Do not use in atmosphere with explosive vapor
• Read safety precautions on pages W1 to W4
