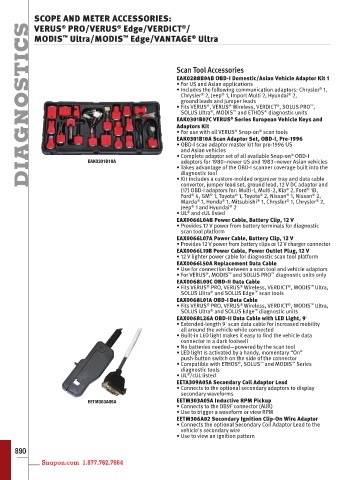

SCOPE AND METER ACCESSORIES:
DIAGNOSTICS
®
®
VERUS PRO/VERUS Edge/VERDICT /
®
™
®
MODIS Ultra/MODIS Edge/VANTAGE Ultra
™
Scan Tool Accessories
EAK0288B04B OBD-I Domestic/Asian Vehicle Adaptor Kit 1
• For US and Asian applications
• Includes the following communication adaptors: Chrysler 1,
®
Chrysler 2, Jeep 1, Import Multi 2, Hyundai 2,
®
®
®
ground leads and jumper leads
• Fits VERUS , VERUS Wireless, VERDICT , SOLUS PRO ,
®
®
™
®
®
SOLUS Ultra , MODIS and ETHOS diagnostic units
®
™
EAK0301B07C VERUS Series European Vehicle Keys and
®
Adaptors Kit
®
®
• For use with all VERUS Snap-on scan tools
EAK0301B10A Scan Adaptor Set, OBD-I, Pre-1996
• OBD-I scan adaptor master kit for pre-1996 US
and Asian vehicles
®
• Complete adaptor set of all available Snap-on OBD-I
EAK0301B10A adaptors for 1980–newer US and 1983–newer Asian vehicles
• Takes advantage of the OBD-I scanner coverage built into the
diagnostic tool
• Kit includes a custom-molded organizer tray and data cable
convertor, jumper lead set, ground lead, 12 V DC adaptor and
(17) OBD-I adaptors for: Multi-1, Multi-2, Kia 2, Ford 1B,
®
®
®
Ford 4, GM 1, Toyota 1, Toyota 2, Nissan 1, Nissan 2,
®
®
®
®
®
®
®
Mazda 1, Honda 1, Mitsubishi 1, Chrysler 1, Chrysler 2,
®
®
®
®
®
Jeep 1 and Hyundai 2
®
• UL and cUL listed
EAX0066L04B Power Cable, Battery Clip, 12 V
• Provides 12 V power from battery terminals for diagnostic
scan tool platform
EAX0066L07A Power Cable, Battery Clip, 12 V
• Provides 12 V power from battery clips or 12 V charger connector
EAX0066L10B Power Cable, Power Outlet Plug, 12 V
• 12 V lighter power cable for diagnostic scan tool platform
EAX0066L50A Replacement Data Cable
• Use for connection between a scan tool and vehicle adaptors
®
™
• For VERUS , MODIS and SOLUS PRO diagnostic units only
™
EAX0068L00C OBD-II Data Cable
®
®
• Fits VERUS PRO, VERUS Wireless, VERDICT , MODIS Ultra,
®
™
SOLUS Ultra and SOLUS Edge scan tools
™
®
EAX0068L01A OBD-I Data Cable
®
™
®
®
• Fits VERUS PRO, VERUS Wireless, VERDICT , MODIS Ultra,
®
™
SOLUS Ultra and SOLUS Edge diagnostic units
EAX0068L26A OBD-II Data Cable with LED Light, 9ʹ
• Extended-length 9ʹ scan data cable for increased mobility
all around the vehicle while connected
• Built-in LED light makes it easy to find the vehicle data
connector in a dark footwell
• No batteries needed—powered by the scan tool
• LED light is activated by a handy, momentary “On”
push-button switch on the side of the connector
™
™
• Compatible with ETHOS , SOLUS and MODIS Series
®
diagnostic tools
• UL /cUL listed
®
EETA309A05A Secondary Coil Adaptor Lead
• Connects to the optional secondary adaptors to display
secondary waveforms
EETM303A05A EETM303A05A Inductive RPM Pickup
• Connects to the DB9F connector (AUX)
• Use to trigger a waveform or view RPM
EETM306A02 Secondary Ignition Clip-On Wire Adaptor
• Connects the optional Secondary Coil Adaptor Lead to the
vehicle's secondary wire
• Use to view an ignition pattern
890
