WIRELESS MODULAR DIAGNOSTIC AND INFORMATION SYSTEMS DIAGNOSTICS

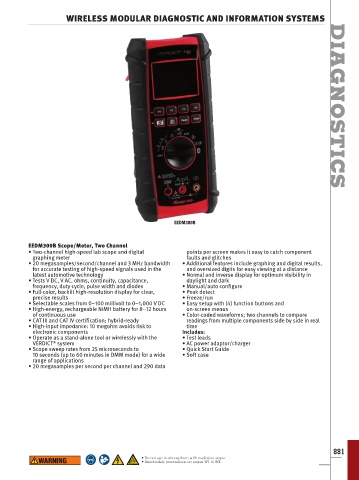

EEDM300B

EEDM300B Scope/Meter, Two Channel
• Two-channel high-speed lab scope and digital points per screen makes it easy to catch component
graphing meter faults and glitches
• 20 megasamples/second/channel and 3 MHz bandwidth • Additional features include graphing and digital results,
for accurate testing of high-speed signals used in the and oversized digits for easy viewing at a distance
latest automotive technology • Normal and inverse display for optimum visibility in
• Tests V DC, V AC, ohms, continuity, capacitance, daylight and dark
frequency, duty cycle, pulse width and diodes • Manual/auto configure
• Full-color, backlit high-resolution display for clear, • Peak detect
precise results • Freeze/run
• Selectable scales from 0–100 millivolt to 0–1,000 V DC • Easy setup with (4) function buttons and
• High-energy, rechargeable NiMH battery for 8–12 hours on-screen menus
of continuous use • Color-coded waveforms; two channels to compare
• CAT III and CAT IV certification; hybrid-ready readings from multiple components side by side in real
• High-input impedance: 10 megohm avoids risk to time
electronic components Includes:
• Operate as a stand-alone tool or wirelessly with the • Test leads
®
VERDICT system • AC power adaptor/charger
• Scope sweep rates from 25 microseconds to • Quick Start Guide
10 seconds (up to 60 minutes in DMM mode) for a wide • Soft case
range of applications
• 20 megasamples per second per channel and 290 data

881
• Do not use in atmosphere with explosive vapor
• Read safety precautions on pages W1 to W4
