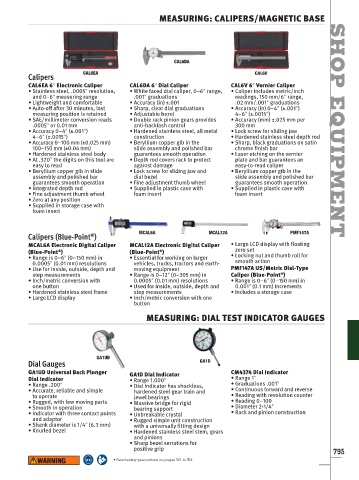

MEASURING: CALIPERS/MAGNETIC BASE

CAL6DA SHOP
CAL6EA CAL6V
Calipers
CAL6EA 6ʺ Electronic Caliper CAL6DA 6ʺ Dial Caliper CAL6V 6ʺ Vernier Caliper
• Stainless steel, .0005ʺ resolution, • White faced dial caliper, 0–6ʺ range, • Caliper includes metric/inch
and 0–6ʺ measuring range .001ʺ graduations readings, 150 mm/6ʺ range,
• Lightweight and comfortable • Accuracy (in) ±.001 .02 mm/.001ʺ graduations
• Auto-off after 30 minutes, last • Sharp, clear dial graduations • Accuracy (in) 0–4ʺ (±.001ʺ)
measuring position is retained • Adjustable bezel 4–6ʺ (±.0015ʺ)
• SAE/millimeter conversion reads • Double rack pinion gears provides • Accuracy (mm) ±.025 mm per
.0005ʺ or 0.01 mm anti-backlash control 300 mm
• Accuracy 0–4ʺ (±.001ʺ) • Hardened stainless steel, all metal • Lock screw for sliding jaw
4–6ʺ (±.0015ʺ) construction • Hardened stainless steel depth rod
• Accuracy 0–100 mm (±0.025 mm) • Beryllium copper gib in the • Sharp, black graduations on satin
100–150 mm (±0.04 mm) slide assembly and polished bar chrome finish bar
• Hardened stainless steel body guarantees smooth operation • Laser etching on the vernier
• At .320ʺ the digits on this tool are • Depth rod covers rack to protect plate and bar guarantees an
easy to read against damage easy-to-read caliper EQUIPMENT
• Beryllium copper gib in slide • Lock screw for sliding jaw and • Beryllium copper gib in the
assembly and polished bar dial bezel slide assembly and polished bar
guarantees smooth operation • Fine adjustment thumb wheel guarantees smooth operation
• Integrated depth rod • Supplied in plastic case with • Supplied in plastic case with
• Fine adjustment thumb wheel foam insert foam insert
• Zero at any position
• Supplied in storage case with
foam insert

MCAL6A MCAL12A PMF147A
®
Calipers (Blue-Point )
MCAL6A Electronic Digital Caliper MCAL12A Electronic Digital Caliper • Large LCD display with floating
(Blue-Point ) (Blue-Point ) zero set
®
®
• Range is 0–6ʺ (0–150 mm) in • Essential for working on larger • Locking nut and thumb roll for
0.0005ʺ (0.01 mm) resolutions vehicles, trucks, tractors and earth- smooth action
• Use for inside, outside, depth and moving equipment PMF147A US/Metric Dial-Type
step measurements • Range is 0–12ʺ (0–305 mm) in Caliper (Blue-Point )
®
• Inch/metric conversion with 0.0005ʺ (0.01 mm) resolutions • Range is 0–6ʺ (0–150 mm) in
one button • Used for inside, outside, depth and 0.001ʺ (0.1 mm) increments
• Hardened stainless steel frame step measurements • Includes a storage case
• Large LCD display • Inch/metric conversion with one
button
MEASURING: DIAL TEST INDICATOR GAUGES

GA1UD
Dial Gauges GA1D
GA1UD Universal Back Plunger GA1D Dial Indicator CM4374 Dial Indicator
Dial Indicator • Range 1.000ʺ • Range 1ʺ
• Range .200ʺ • Dial Indicator has shockless, • Graduations .001ʺ
• Accurate, reliable and simple hardened steel gear train and • Continuous forward and reverse
to operate jewel bearings • Reading with revolution counter
• Rugged, with few moving parts • Massive bridge for rigid • Reading 0–100
• Smooth in operation bearing support • Diameter 2-1/4ʺ
• Indicator with three contact points • Unbreakable crystal • Rack and pinion construction
and adaptor • Rugged simple unit construction
• Shank diameter is 1/4ʺ (6.3 mm) with a universally fitting design
• Knurled bezel • Hardened stainless steel stem, gears
and pinions
• Sharp bezel serrations for
positive grip
795
• Read safety precautions on pages W1 to W4
