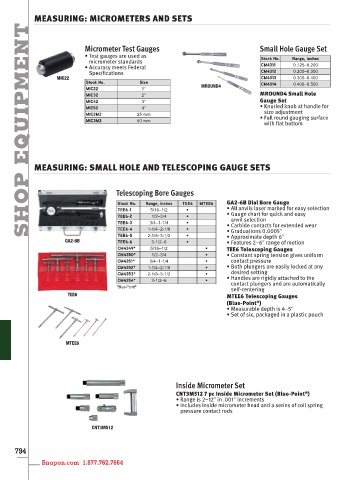

MEASURING: MICROMETERS AND SETS
EQUIPMENT

Micrometer Test Gauges Small Hole Gauge Set
• Test gauges are used as Stock No. Range, inches
micrometer standards
• Accuracy meets Federal CM4311 0.125–0.200
Specifications CM4312 0.200–0.300
MIC22 CM4313 0.300–0.400
Stock No. Size CM4314 0.400–0.500
MROUND4
MIC22 1ʺ
MIC32 2ʺ MROUND4 Small Hole
MIC42 3ʺ Gauge Set
MIC52 4ʺ • Knurled knob at handle for
MIC2M2 25 mm size adjustment
MIC3M2 50 mm • Full round gauging surface
with flat bottom

MEASURING: SMALL HOLE AND TELESCOPING GAUGE SETS
SHOP Telescoping Bore Gauges MTEE6 GA2-6B Dial Bore Gauge

TEE6
Stock No.
Range, inches
• All anvils laser marked for easy selection
5/16–1/2
TEE6-1
•
• Gauge chart for quick and easy
1/2–3/4
TEE6-2
•
anvil selection
3/4–1-1/4
TEE6-3
• Graduations 0.0005ʺ
2-1/8–3-1/2
TEE6-5
• Approximate depth 6ʺ
GA2-6B TEE6-4 1-1/4–2-1/8 • • • • • Carbide contacts for extended wear
3-1/2–6
TEE6-6
• Features 2–6ʺ range of motion
CM4349* 5/16–1/2 • TEE6 Telescoping Gauges
CM4350* 1/2–3/4 • • Constant spring tension gives uniform
CM4351* 3/4–1-1/4 • contact pressure
CM4352* 1-1/4–2-1/8 • • Both plungers are easily locked at any
CM4353* 2-1/8–3-1/2 • desired setting
CM4354* 3-1/2–6 • • Handles are rigidly attached to the
*Blue-Point ® contact plungers and are automatically
self-centering
TEE6 MTEE6 Telescoping Gauges
®
(Blue-Point )
• Measurable depth is 4–5ʺ
• Set of six, packaged in a plastic pouch
MTEE6
Inside Micrometer Set
CNT3M512 7 pc Inside Micrometer Set (Blue-Point )
®
• Range is 2–12ʺ in .001ʺ increments
• Includes inside micrometer head and a series of coil spring
pressure contact rods
CNT3M512
