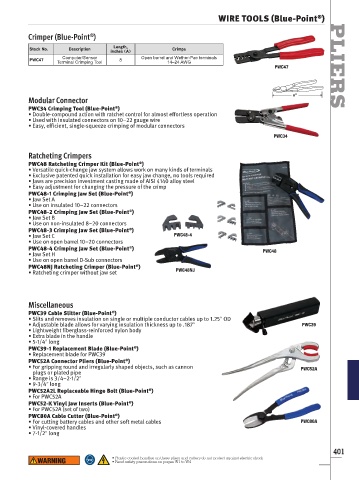

WIRE TOOLS (Blue-Point )
®

®
Crimper (Blue-Point )
Length,
Stock No. Description Crimps
inches (A)
Computer/Sensor Open barrel and Wether-Pac terminals
PWC47 Terminal Crimping Tool 8 14–24 AWG
PWC47 PLIERS

Modular Connector
®
PWC34 Crimping Tool (Blue-Point )
• Double-compound action with ratchet control for almost effortless operation
• Used with insulated connectors on 10–22 gauge wire
• Easy, efficient, single-squeeze crimping of modular connectors
PWC34

Ratcheting Crimpers
PWC48 Ratcheting Crimper Kit (Blue-Point )
®
• Versatile quick-change jaw system allows work on many kinds of terminals
• Exclusive patented quick installation for easy jaw change, no tools required
• Jaws are precision investment casting made of AISI 4140 alloy steel
• Easy adjustment for changing the pressure of the crimp
PWC48-1 Crimping Jaw Set (Blue-Point )
®
• Jaw Set A
• Use on insulated 10–22 connectors
PWC48-2 Crimping Jaw Set (Blue-Point )
®
• Jaw Set B
• Use on non-insulated 8–20 connectors
PWC48-3 Crimping Jaw Set (Blue-Point )
®
• Jaw Set C PWC48-4
• Use on open barrel 10–20 connectors
®
PWC48-4 Crimping Jaw Set (Blue-Point ) PWC48
• Jaw Set H
• Use on open barrel D-Sub connectors
®
PWC48NJ Ratcheting Crimper (Blue-Point )
• Ratcheting crimper without jaw set PWC48NJ

Miscellaneous
®
PWC39 Cable Slitter (Blue-Point )
• Slits and removes insulation on single or multiple conductor cables up to 1.25ʺ OD
• Adjustable blade allows for varying insulation thickness up to .187ʺ PWC39
• Lightweight fiberglass-reinforced nylon body
• Extra blade in the handle
• 5-1/4ʺ long
PWC39-1 Replacement Blade (Blue-Point )
®
• Replacement blade for PWC39
PWC52A Connector Pliers (Blue-Point )
®
• For gripping round and irregularly shaped objects, such as cannon PWC52A
plugs or plated pipe
• Range is 3/4–2-1/2ʺ
• 9-3/4ʺ long
®
PWC52A2L Replaceable Hinge Bolt (Blue-Point )
• For PWC52A
PWC52-K Vinyl Jaw Inserts (Blue-Point )
®
• For PWC52A (set of two)
®
PWC80A Cable Cutter (Blue-Point )
• For cutting battery cables and other soft metal cables PWC80A
• Vinyl-covered handles
• 7-1/2ʺ long
401
HAND TOOLS
• Plastic-coated handles on these pliers and cutters do not protect against electric shock
401
• Read safety precautions on pages W1 to W4
