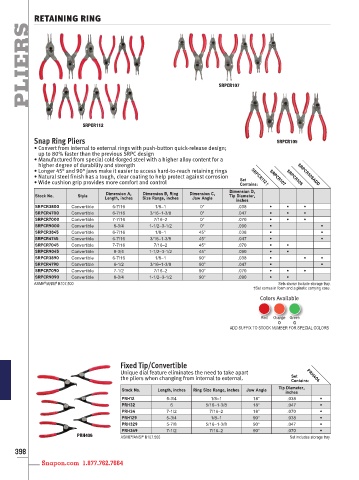

RETAINING RING
PLIERS SRPCR107

SRPCR112

Snap Ring Pliers SRPCR105
• Convert from internal to external rings with push-button quick-release design;
up to 80% faster than the previous SRPC design
• Manufactured from special cold-forged steel with a higher alloy content for a
higher degree of durability and strength
• Longer 45° and 90° jaws make it easier to access hard-to-reach retaining rings
• Natural steel finish has a tough, clear coating to help protect against corrosion Set SRPCR112 † SRPCR107 SRPCR105
• Wide cushion grip provides more comfort and control Contains:
SRPCR105ADD
Dimension D,
Dimension A, Dimension B, Ring Dimension C,
Stock No. Style Tip Diameter,
Length, inches Size Range, inches Jaw Angle
inches
SRPCR3800 Convertible 6-7/16 1/8–1 0° .038 • • •
SRPCR4700 Convertible 6-7/16 3/16–1-3/8 0° .047 • • •
SRPCR7000 Convertible 7-7/16 7/16–2 0° .070 • • •
SRPCR9000 Convertible 8-3/4 1-1/2–3-1/2 0° .090 • •
SRPCR3845 Convertible 6-7/16 1/8–1 45° .038 • •
SRPCR4745 Convertible 6-7/16 3/16–1-3/8 45° .047 • •
SRPCR7045 Convertible 7-7/16 7/16–2 45° .070 • •
SRPCR9045 Convertible 8-3/4 1-1/2–3-1/2 45° .090 • •
SRPCR3890 Convertible 6-7/16 1/8–1 90° .038 • • •
SRPCR4790 Convertible 6-1/2 3/16–1-3/8 90° .047 • •
SRPCR7090 Convertible 7-1/2 7/16–2 90° .070 • • •
SRPCR9090 Convertible 8-3/4 1-1/2–3-1/2 90° .090 • •
®
ASME /ANSI B107.500 Sets shown include storage tray.
®
†Set comes in foam and a plastic carrying case.
Colors Available
Red Orange Green
O G
ADD SUFFIX TO STOCK NUMBER FOR SPECIAL COLORS

Fixed Tip/Convertible
Unique dial feature eliminates the need to take apart PRH406
the pliers when changing from internal to external. Set
Contains:
Tip Diameter,
Stock No. Length, inches Ring Size Range, inches Jaw Angle
inches
PRH12 5-3/4 1/8–1 18° .038 •
PRH32 6 5/16–1-3/8 18° .047 •
PRH34 7-1/2 7/16–2 18° .070 •
PRH129 5-3/4 1/8–1 90° .038 •
PRH329 5-7/8 5/16–1-3/8 90° .047 •
PRH349 7-1/2 7/16–2 90° .070 •
PRH406 ASME /ANSI B107.500 Set includes storage tray.
®
®
398

Snapon.com 1.877.762.7664
