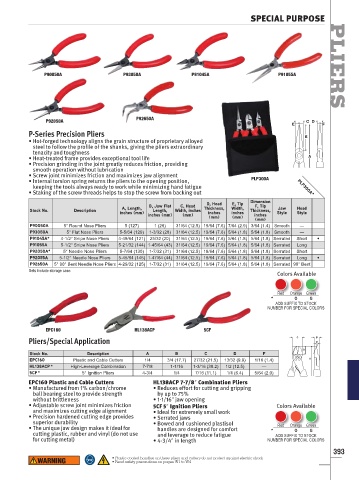

Page 395 - 实耐宝完整US版1500

SPECIAL PURPOSE

P90050A P93050A P91045A P91055A PLIERS

P92650A
P92050A
P-Series Precision Pliers
• Hot-forged technology aligns the grain structure of proprietary alloyed
steel to follow the profile of the shanks, giving the pliers extraordinary
tenacity and toughness
• Heat-treated frame provides exceptional tool life
• Precision grinding in the joint greatly reduces friction, providing
smooth operation without lubrication
• Screw joint minimizes friction and maximizes jaw alignment
• Internal torsion spring returns the pliers to the opening position, PLP300A
keeping the tools always ready to work while minimizing hand fatigue PLP300A*
• Staking of the screw threads helps to stop the screw from backing out
Dimension
D, Head E, Tip
B, Jaw Flat C, Head F, Tip
A, Length, Thickness, Width, Jaw Head
Stock No. Description Length, Width, inches Thickness,
inches (mm) inches inches Style Style
inches (mm) (mm) inches
(mm) (mm)
(mm)
P90050A 5ʺ Round Nose Pliers 5 (127) 1 (26) 31/64 (12.5) 19/64 (7.6) 7/64 (2.9) 3/64 (1.4) Smooth —
P93050A 5ʺ Flat Nose Pliers 5-5/64 (129) 1-3/32 (28) 31/64 (12.5) 19/64 (7.6) 5/64 (1.8) 5/64 (1.8) Smooth —
P91045A* 4-1/2ʺ Snipe Nose Pliers 4-49/64 (121) 25/32 (20) 31/64 (12.5) 19/64 (7.6) 5/64 (1.8) 5/64 (1.8) Serrated Short •
P91055A 5-1/2ʺ Snipe Nose Pliers 5-21/32 (144) 1-45/64 (43) 31/64 (12.5) 19/64 (7.6) 5/64 (1.8) 5/64 (1.8) Serrated Long
P92050A* 5ʺ Needle Nose Pliers 5-7/64 (130) 1-7/32 (31) 31/64 (12.5) 19/64 (7.6) 5/64 (1.8) 5/64 (1.8) Serrated Short
P92055A 5-1/2ʺ Needle Nose Pliers 5-45/64 (145) 1-47/64 (44) 31/64 (12.5) 19/64 (7.6) 5/64 (1.8) 5/64 (1.8) Serrated Long •
P92650A 5ʺ 90° Bent Needle Nose Pliers 4-29/32 (125) 1-7/32 (31) 31/64 (12.5) 19/64 (7.6) 5/64 (1.8) 5/64 (1.8) Serrated 90° Bent
Sets include storage case.
Colors Available
Red Orange Green
* O G
ADD SUFFIX TO STOCK
NUMBER FOR SPECIAL COLORS

EPC160 HL138ACP 5CF
Pliers/Special Application

Stock No. Description A B C D F
EPC160 Plastic and Cable Cutters 1/4 3/4 (17.7) 27/32 (21.5) 13/32 (9.9) 1/16 (1.4)
HL138ACP * High-Leverage Combination 7-7/8 1-1/16 1-3/16 (30.2) 1/2 (12.5) —
5CF * 5ʺ Ignition Pliers 4-3/4 1/4 7/16 (11.1) 1/4 (6.4) 5/64 (2.0)
EPC160 Plastic and Cable Cutters HL138ACP 7-7/8ʺ Combination Pliers
• Manufactured from 1% carbon/chrome • Reduces effort for cutting and gripping
ball bearing steel to provide strength by up to 75%
without brittleness • 1-1/16ʺ jaw opening
• Adjustable screw joint minimizes friction 5CF 5ʺ Ignition Pliers Colors Available
and maximizes cutting edge alignment • Ideal for extremely small work
• Precision hardened cutting edge provides • Serrated jaws
superior durability • Bowed and cushioned plastisol Red Orange Green
• The unique jaw design makes it ideal for handles are designed for comfort * O G
cutting plastic, rubber and vinyl (do not use and leverage to reduce fatigue ADD SUFFIX TO STOCK
for cutting metal) • 4-3/4ʺ in length NUMBER FOR SPECIAL COLORS

393
HAND TOOLS
• Plastic-coated handles on these pliers and cutters do not protect against electric shock
393
• Read safety precautions on pages W1 to W4
