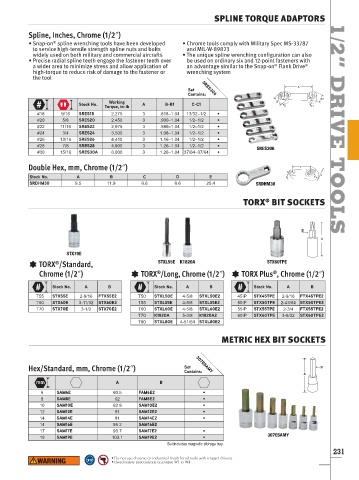

SPLINE TORQUE ADAPTORS

Spline, Inches, Chrome (1/2ʺ)
®
• Snap-on spline wrenching tools have been developed • Chrome tools comply with Military Spec MS-33787 1/2”
to service high-tensile strength spline nuts and bolts and MIL-W-89823
widely used on both military and commercial aircrafts • The unique spline wrenching configuration can also
• Precise radial spline teeth engage the fastener teeth over be used on ordinary six and 12-point fasteners with
a wider area to minimize stress and allow application of an advantage similar to the Snap-on Flank Drive
®
®
high-torque to reduce risk of damage to the fastener or wrenching system
the tool
Set SRES306
Contains:
Working
Stock No. A B-B1 C-C1
Torque, in-lb
#18 9/16 SRES18 2,275 3 .818–1.04 13/32–1/2 • DRIVE
#20 5/8 SRES20 2,450 3 .900–1.04 1/2–1/2 •
#22 11/16 SRES22 2,975 3 .989–1.04 1/2–1/2 •
#24 3/4 SRES24 3,500 3 1.08–1.04 1/2–1/2 •
#26 13/16 SRES26 4,410 3 1.16–1.04 1/2–1/2 •
#28 7/8 SRES28 4,900 3 1.26–1.04 1/2–1/2 •
SRES306
#30 15/16 SRES30A 6,000 3 1.26–1.04 37/64–37/64 •
Double Hex, mm, Chrome (1/2ʺ)
Stock No. A B C D E
SRDHM30 9.5 11.9 6.6 6.6 25.4 SRDHM30

TORX BIT SOCKETS TOOLS
®

STX70E
®

TORX /Standard, STXL55E K1820A STX60TPE
Chrome (1/2ʺ) TORX /Long, Chrome (1/2ʺ) TORX Plus , Chrome (1/2ʺ)
®
®

Stock No. A B Stock No. A B Stock No. A B
T55 STX55E 2-9/16 FTX55E2 T50 STXL50E 4-5/8 STXL50E2 45IP STX45TPE 2-9/16 FTX45TPE2
T60 STX60E 3-11/32 STX60E2 T55 STXL55E 4-5/8 STXL55E2 50IP STX50TPE 2-43/64 STX50TPE2
T70 STX70E 3-1/2 STX70E2 T60 STXL60E 4-5/8 STXL60E2 55IP STX55TPE 2-3/4 FTX55TPE2
T70 K1820A 5-3/8 K1820A2 60IP STX60TPE 3-9/32 STX60TPE2
T80 STXL80E 4-51/64 STXL80E2
METRIC HEX BIT SOCKETS

Hex/Standard, mm, Chrome (1/2ʺ) Set 307ESAMY
Contains:

A B
6 SAM6E 60.5 FAM6E2 •
8 SAM8E 62 FAM8E2 •
10 SAM10E 62.8 SAM10E2 •
12 SAM12E 81 SAM12E2 •
14 SAM14E 81 SAM14E2 •
14 SAM16E 95.2 SAM16E2
17 SAM17E 93.7 SAM17E2 •
19 SAM19E 103.1 SAM19E2 • 307ESAMY
Set includes magnetic storage tray.
231
• Do not use chrome or industrial finish hand tools with impact drivers
• Read safety precautions on pages W1 to W4
