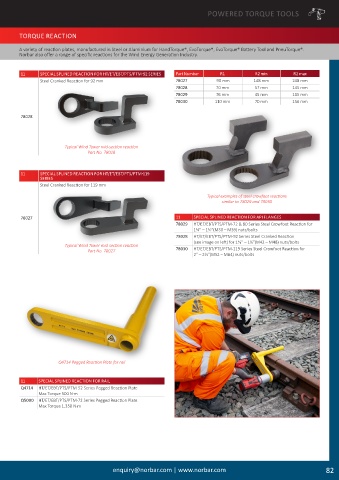

POWERED TORQUE TOOLS

TORQUE REACTION

A variety of reaction plates, manufactured in Steel or Aluminium for HandTorque®, EvoTorque®, EvoTorque® Battery Tool and PneuTorque®.
Norbar also offer a range of specific reactions for the Wind Energy Generation Industry.

11 SPECIAL SPLINED REACTION FOR HT/ET/EBT/PTS/PTM-92 SERIES Part Number R1 R2 min R2 max
Steel Cranked Reaction for 92 mm 78027 90 mm 148 mm 248 mm
78028 70 mm 57 mm 145 mm
78029 76 mm 45 mm 115 mm
78030 110 mm 70 mm 156 mm

78028

Typical Wind Tower mid-section reaction
Part No. 78028

11 SPECIAL SPLINED REACTION FOR HT/ET/EBT/PTS/PTM-119
SERIES
Steel Cranked Reaction for 119 mm
Typical examples of steel crowfoot reactions
similar to 78029 and 78030

78027 11 SPECIAL SPLINED REACTION FOR API FLANGES
78029 HT/ET/EBT/PTS/PTM-72 & 80 Series Steel Crowfoot Reaction for
1 ∕ 4” – 1 ∕ 2”(M30 – M39) nuts/bolts
1
1
78028 HT/ET/EBT/PTS/PTM-92 Series Steel Cranked Reaction
(see image on left) for 1 ∕ 8” – 1∕ 8”(M42 – M48) nuts/bolts
5
7
Typical Wind Tower mid-section reaction 78030
Part No. 78027 HT/ET/EBT/PTS/PTM-119 Series Steel Crowfoot Reaction for
2” – 2 ∕ 2”(M52 – M64) nuts/bolts
1

Q4714 Pegged Reaction Plate for rail

11 SPECIAL SPLINED REACTION FOR RAIL
Q4714 HT/ET/EBT/PTS/PTM-52 Series Pegged Reaction Plate
Max Torque 500 N·m
Q5000 HT/ET/EBT/PTS/PTM-72 Series Pegged Reaction Plate
Max Torque 1,350 N·m
