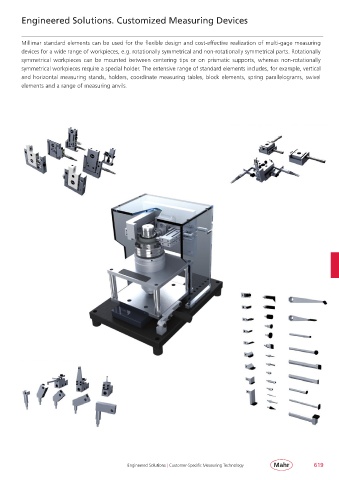

Engineered Solutions. Customized Measuring Devices

Millimar standard elements can be used for the flexible design and cost-effective realization of multi-gage measuring
devices for a wide range of workpieces, e.g. rotationally symmetrical and non-rotationally symmetrical parts. Rotationally
symmetrical workpieces can be mounted between centering tips or on prismatic supports, whereas non-rotationally
symmetrical workpieces require a special holder. The extensive range of standard elements includes, for example, vertical
and horizontal measuring stands, holders, coordinate measuring tables, block elements, spring parallelograms, swivel
elements and a range of measuring anvils.

Engineered Solutions | Customer-Specific Measuring Technology 619
