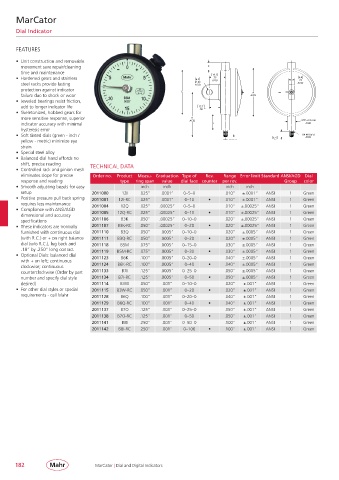

MarCator

Dial Indicator

FEATURES

• Unit construction and removable
movement save repair/cleaning E
time and maintenance 19.1
.75
• Hardened gears and stainless 6.4 AGD 6.4
.25
.25
steel racks provide lasting AGD AGD
protection against indicator C A
failure due to shock or wear AGD
• Jeweled bearings resist friction,
add to longer indicator life 12.7
.50 *
• Skeletonized, hobbed gears for
more sensitive response, superior AGD .375" or 8 mm
B
indicator accuracy with minimal D AGD
hysteresis error
• Soft tinted dials (green - inch / 6.4 #4-48 Thr'd
AGD
yellow - metric) minimize eye Range AGD
.25
AGD
strain
• Special steel alloy
• Balanced dial hand affords no
shift, precise reading TECHNICAL DATA
• Controlled rack and pinion mesh
eliminates slope for precise Order no. Product Measu- Gradua tion Type of Rev. Range Error limit Standard ANSI/AGD Dial
response and reading type ring span value dial face counter per rev. Group color
• Smooth adjusting bezels for easy inch inch inch inch
setup 2011000 12I .025” .0001’’ 0– 5– 0 .010” ±.0001” ANSI 1 Green
• Positive pressure pull back spring 2011001 12I-RC .025” .0001’’ 0– 10 • .010” ±.0001” ANSI 1 Green
requires less maintenance 2011004 12Q .025” .00025” 0– 5– 0 .010” ±.00025” ANSI 1 Green
• Compliance with ANSI/AGD 2011005 12Q-RC .025” .00025” 0– 10 • .010” ±.00025” ANSI 1 Green
dimensional and accuracy
specifications 2011106 B3K .050” .00025” 0– 10– 0 .020” ±.00025” ANSI 1 Green
• These indicators are normally 2011107 B3K-RC .050” .00025” 0– 20 • .020” ±.00025” ANSI 1 Green
furnished with continuous dial 2011110 B3Q .050” .0005” 0– 10– 0 .020” ±.0005” ANSI 1 Green
(with R.C.) or + on right balance 2011111 B3Q-RC .050” .0005” 0– 20 • .020” ±.0005” ANSI 1 Green
dial (w/o R.C.), lug back and 2011118 B5M .075” .0005” 0– 15– 0 .030” ±.0005” ANSI 1 Green
.18” by .250” long contact 2011119 B5M-RC .075” .0005” 0– 30 • .030” ±.0005” ANSI 1 Green
• Optional Dials: balanced dial 2011123 B6K .100” .0005” 0– 20– 0 .040” ±.0005” ANSI 1 Green
with + on left; continuous
clockwise; continuous 2011124 B6K-RC .100” .0005” 0– 40 • .040” ±.0005” ANSI 1 Green
counterclockwise (Order by part 2011133 B7I .125” .0005” 0– 25– 0 .050” ±.0005” ANSI 1 Green
number and specify dial style 2011134 B7I-RC .125” .0005” 0– 50 • .050” ±.0005” ANSI 1 Green
desired) 2011114 B3W .050” .001” 0– 10– 0 .020” ±.001” ANSI 1 Green
• For other dial styles or special 2011115 B3W-RC .050” .001” 0– 20 • .020” ±.001” ANSI 1 Green
requirements - call Mahr 2011128 B6Q .100” .001” 0– 20– 0 .040” ±.001” ANSI 1 Green
2011129 B6Q-RC .100” .001” 0– 40 • .040” ±.001” ANSI 1 Green
2011137 B7O .125” .001” 0– 25– 0 .050” ±.001” ANSI 1 Green
2011138 B7O-RC .125” .001” 0– 50 • .050” ±.001” ANSI 1 Green
2011141 B8I .250” .001” 0– 50– 0 .100” ±.001” ANSI 1 Green
2011142 B8I-RC .250” .001” 0– 100 • .100” ±.001” ANSI 1 Green

182 MarCator | Dial and Digital Indicators
