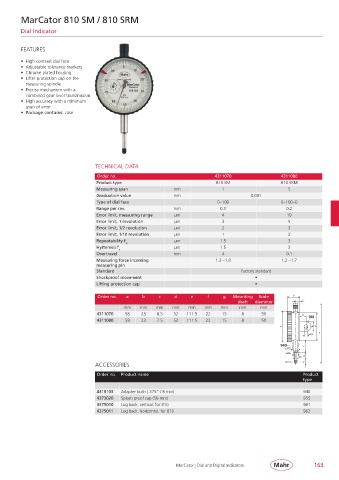

MarCator 810 SM / 810 SRM

Dial Indicator

FEATURES

• High contrast dial face
• Adjustable tolerance markers
• Chrome plated housing
• Lifter protection cap on the
measuring spindle
• Precise mechanism with a
combined gear lever transmission
• High accuracy with a minimum
span of error
• Package contains: case

TECHNICAL DATA
Order no. 4311070 4311080
Product type 810 SM 810 SRM
Measuring span mm 1 5
Graduation value mm 0.001
Type of dial face 0– 100 0– 100– 0
Range per rev. mm 0.1 0.2
Error limit, measuring range µm 4 10
Error limit, 1 revolution µm 3 5
Error limit, 1/2 revolution µm 2 3
Error limit, 1/10 revolution µm 1 2
Repeatability f w µm 1.5 3
Hysteresis f µm 1.5 3
u
Overtravel mm 4 0.1
Measuring force incoming 1.3 – 1.8 1.2 – 1.7
measuring pin
Standard Factory standard
Shockproof movement •
Lifting protection cap •
Order no. a b c d e f g Mounting Scale
shaft diameter
mm mm mm mm mm mm mm mm mm
4311070 58 23 8.5 52 111.5 22 15 8 50
4311080 58 23 7.5 52 111.5 22 15 8 50

ACCESSORIES

Order no. Product name Product
type

4310103 Adapter bush (.375” / 8 mm) 940
4373020 Splash proof cap (58 mm) 955
4375010 Lug back, vertical, for 810 961
4375011 Lug back, horizontal, for 810 962

MarCator | Dial and Digital Indicators 163
