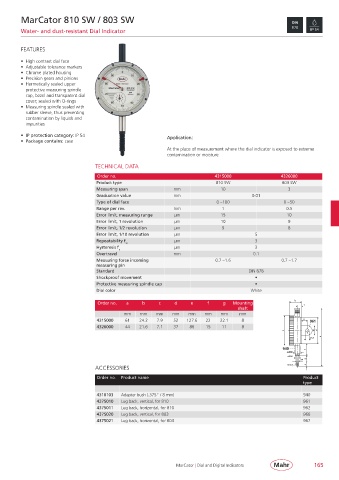

MarCator 810 SW / 803 SW

Water- and dust-resistant Dial Indicator

FEATURES

• High contrast dial face
• Adjustable tolerance markers
• Chrome plated housing
• Precision gears and pinions
• Hermetically sealed upper
protective measuring spindle
cap, bezel and transparent dial
cover; sealed with O-rings
• Measuring spindle sealed with
rubber sleeve, thus preventing
contamination by liquids and
impurities
• IP protection category: IP 54 Application:
• Package contains: case
At the place of measurement where the dial indicator is exposed to extreme
contamination or moisture

TECHNICAL DATA
Order no. 4315000 4326000
Product type 810 SW 803 SW
Measuring span mm 10 3
Graduation value mm 0.01
Type of dial face 0 – 100 0 – 50
Range per rev. mm 1 0.5
Error limit, measuring range µm 15 10
Error limit, 1 revolution µm 10 9
Error limit, 1/2 revolution µm 9 8
Error limit, 1/10 revolution µm 5
Repeatability f w µm 3
Hysteresis f µm 3
u
Overtravel mm 0.1
Measuring force incoming 0.7 – 1.6 0.7 – 1.7
measuring pin
Standard DIN 878
Shockproof movement •
Protective measuring spindle cap •
Dial color White

Order no. a b c d e f g Mounting
shaft
mm mm mm mm mm mm mm mm
4315000 61 24.2 7.9 52 127.6 22 22.1 8
4326000 44 21.6 7.1 37 86 15 11 8

ACCESSORIES
Order no. Product name Product
type

4310103 Adapter bush (.375” / 8 mm) 940
4375010 Lug back, vertical, for 810 961
4375011 Lug back, horizontal, for 810 962
4375020 Lug back, vertical, for 803 966
4375021 Lug back, horizontal, for 803 967

MarCator | Dial and Digital Indicators 165
