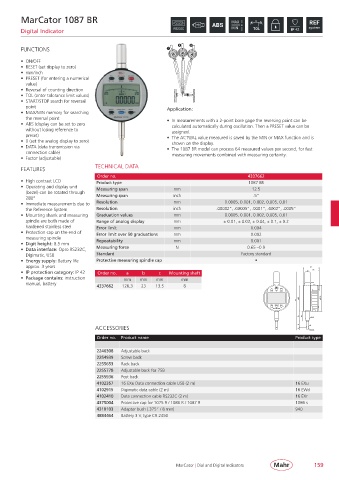

MarCator 1087 BR

Digital Indicator

FUNCTIONS

• ON/OFF
• RESET (set display to zero)
• mm/inch
• PRESET (for entering a numerical
value)
• Reversal of counting direction
• TOL (enter tolerance limit values)
• START/STOP search for reversal
point Application:
• MAX/MIN memory for searching
the reversal point • In measurements with a 2-point bore gage the reversing point can be
• ABS (display can be set to zero calculated automatically during oscillation. Then a PRESET value can be
without losing reference to assigned.
preset) • The ACTUAL value measured is saved by the MIN or MAX function and is
• 0 (set the analog display to zero) shown on the display.
• DATA (data transmission via • The 1087 BR model can process 64 measured values per second, for fast
connection cable) measuring movements combined with measuring certainty.
• Factor (adjustable)
TECHNICAL DATA
FEATURES
Order no. 4337662
• High contrast LCD Product type 1087 BR
• Operating and display unit Measuring span mm 12.5
(bezel) can be rotated through Measuring span inch .5”
280°
• Immediate measurements due to Resolution mm 0.0005, 0.001, 0.002, 0.005, 0.01
the Reference System Resolution inch .00002”, .00005”, .0001”, .0002”, .0005”
• Mounting shank and measuring Graduation values mm 0.0005, 0.001, 0.002, 0.005, 0.01
spindle are both made of Range of analog display mm ± 0.01, ± 0.02, ± 0.04, ± 0.1, ± 0.2
hardened stainless steel Error limit mm 0.004
• Protection cap on the end of Error limit over 50 graduations mm 0.002
measuring spindle
• Digit height: 8.5 mm Repeatability mm 0.001
• Data interface: Opto RS232C, Measuring force N 0.65 – 0.9
Digimatic, USB Standard Factory standard
• Energy supply: Battery life Protective measuring spindle cap •
approx. 3 years
• IP protection category: IP 42 Order no. a b c Mounting shaft
• Package contains: instruction mm mm mm mm
manual, battery
4337662 126.3 23 13.5 8

ACCESSORIES
Order no. Product name Product type

2246308 Adjustable back
2254939 Screw back
2255653 Rack back
2255778 Adjustable back for 75B
2255936 Post back
4102357 16 EXu Data connection cable USB (2 m) 16 EXu
4102915 Digimatic data cable (2 m) 16 EWd
4102410 Data connection cable RS232C (2 m) 16 EXr
4375004 Protective cap for 1075 R / 1086 R / 1087 R 1086 s
4310103 Adapter bush (.375” / 8 mm) 940
4884464 Battery 3 V, type CR 2450

MarCator | Dial and Digital Indicators 159
