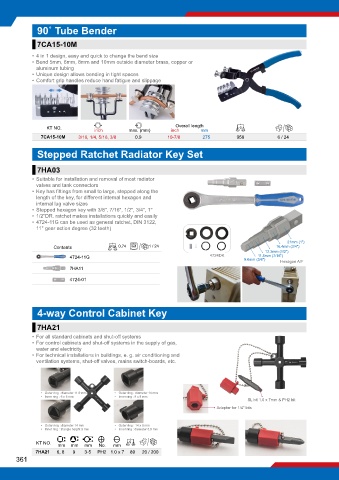

Page 402 - 蓝带金统立KINGTONY2025年样本

90˚ Tube Bender

7CA15-10M

• 4 in 1 design, easy and quick to change the bend size
• Bend 5mm, 6mm, 8mm and 10mm outside diameter brass, copper or
aluminum tubing
• Unique design allows bending in tight spaces
• Comfort grip handles reduce hand fatigue and slippage

Overall length
KT NO. inch max. (mm) inch mm g
7CA15-10M 3/16, 1/4, 5/16, 3/8 0.9 10-7/8 275 958 6 / 24
Stepped Ratchet Radiator Key Set

7HA03
• Suitable for installation and removal of most radiator
valves and tank connectors
• Key has fittings from small to large, stepped along the
length of the key, for different internal hexagon and
internal lug valve sizes
• Stepped hexagon key with 3/8", 7/16", 1/2", 3/4", 1"
• 1/2"DR. ratchet makes installations quickly and easily
• 4724-11G can be used as general ratchet, DIN 3122,
11° gear action degree (32 teeth)

21mm (1")
Contents Kg 0.74 set 1 / 24 16.4mm (3/4")
12.3mm (1/2")
4724-11G 4724DK 11.6mm (7/16")
9.6mm (3/8")
Hexagon A/F
7HA11
4724-01

4-way Control Cabinet Key

7HA21
• For all standard cabinets and shut-off systems
• For control cabinets and shut-off systems in the supply of gas,
water and electricity
• For technical installations in buildings, e. g. air conditioning and
ventilation systems, shut-off valves, mains switch-boards, etc.

• Outer ring : diameter 11.9 mm • Outer ring : diameter 14 mm
• Inner ring : 6 x 6 mm • Inner ring : 8 x 8 mm
SL bit 1.0 x 7mm & PH2 bit
Adapter for 1/4" bits

• Outer ring : diameter 14 mm • Outer ring : 14 x 9 mm
• Inner ring : triangle height 9 mm • Inner ring : diameter 5.5 mm

KT NO. No. mm g
mm
mm
mm
7HA21 6, 8 9 3-5 PH2 1.0 x 7 89 20 / 200
361
