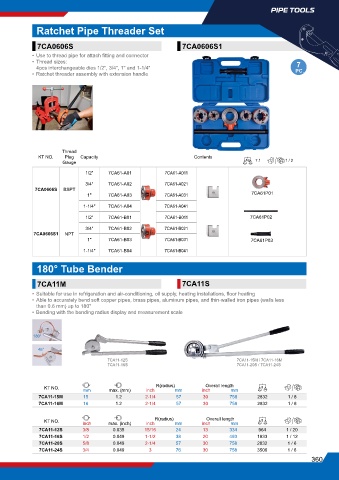

PIPE TOOLS

Ratchet Pipe Threader Set

7CA0606S 7CA0606S1
• Use to thread pipe for attach fitting and connector
• Thread sizes: 7
4pcs interchangeable dies 1/2", 3/4", 1" and 1-1/4"
• Ratchet threader assembly with extension handle PC.

Thread
KT NO. Plug Capacity Contents
Gauge Kg 7.1 1 / 2
1/2" 7CA61-A01 7CA61-A011

3/4" 7CA61-A02 7CA61-A021
7CA0606S BSPT
1" 7CA61-A03 7CA61-A031 7CA61P01
1-1/4" 7CA61-A04 7CA61-A041

1/2" 7CA61-B01 7CA61-B011 7CA61P02
3/4" 7CA61-B02 7CA61-B021
7CA0606S1 NPT
1" 7CA61-B03 7CA61-B031 7CA61P03
1-1/4" 7CA61-B04 7CA61-B041

180° Tube Bender

7CA11M 7CA11S

• Suitable for use in refrigeration and air-conditioning, oil supply, heating installations, floor heating
• Able to accurately bend soft copper pipes, brass pipes, aluminum pipes, and thin-walled iron pipes (walls less
than 0.6 mm) up to 180°
• Bending with the bending radius display and measurement scale

180°

45°
7CA11-12S 7CA11-15M / 7CA11-16M
7CA11-16S 7CA11-20S / 7CA11-24S

R(radius)

Overall length
KT NO. mm max. (mm) inch mm inch mm g
7CA11-15M 15 1.2 2-1/4 57 30 758 2832 1 / 8
7CA11-16M 16 1.2 2-1/4 57 30 758 2832 1 / 8

Overall length
R(radius)
KT NO. inch max. (inch) inch mm inch mm g
7CA11-12S 3/8 0.035 15/16 24 13 334 964 1 / 20
7CA11-16S 1/2 0.049 1-1/2 38 20 493 1833 1 / 12
7CA11-20S 5/8 0.049 2-1/4 57 30 758 2832 1 / 6
7CA11-24S 3/4 0.049 3 76 30 758 3500 1 / 6
360
