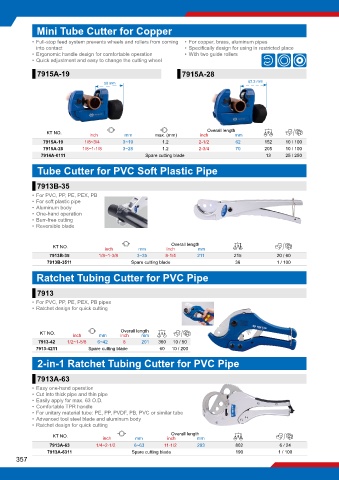

Page 398 - 蓝带金统立KINGTONY2025年样本

Mini Tube Cutter for Copper

• Full-stop feed system prevents wheels and rollers from coming • For copper, brass, aluminum pipes
into contact • Specifically design for using in restricted place
• Ergonomic handle design for comfortable operation • With two guide rollers
• Quick adjustment and easy to change the cutting wheel

7915A-19 7915A-28

50 mm 57.2 mm

Overall length

KT NO. inch mm max. (mm) inch mm g
7915A-19 1/8~3/4 3~19 1.2 2-1/2 62 152 10 / 100
7915A-28 1/8~1-1/8 3~28 1.2 2-3/4 70 205 10 / 100
7914A-0111 Spare cutting blade 13 25 / 250

Tube Cutter for PVC Soft Plastic Pipe

7913B-35
• For PVC, PP, PE, PEX, PB
• For soft plastic pipe
• Aluminum body
• One-hand operation
• Burr-free cutting
• Reversible blade

Overall length
KT NO. inch mm inch mm g
7913B-35 1/8~1-3/8 3~35 8-1/4 211 215 20 / 60
7913B-3511 Spare cutting blade 36 1 / 100
Ratchet Tubing Cutter for PVC Pipe

7913

• For PVC, PP, PE, PEX, PB pipes
• Ratchet design for quick cutting

KT NO. inch mm Overall length g
inch mm
7913-42 1/2~1-5/8 6~42 8 201 360 10 / 50
7913-4211 Spare cutting blade 60 10 / 200
2-in-1 Ratchet Tubing Cutter for PVC Pipe

7913A-63
• Easy one-hand operation
• Cut into thick pipe and thin pipe
• Easily apply for max. 63 O.D.
• Comfortable TPR handle
• For unitary material tube: PE, PP, PVDF, PB, PVC or similar tube
• Advanced tool steel blade and aluminum body
• Ratchet design for quick cutting
Overall length
KT NO. inch mm inch mm g
7913A-63 1/4~2-1/2 6~63 11-1/2 293 802 6 / 24
7913A-6311 Spare cutting blade 190 1 / 100
357
