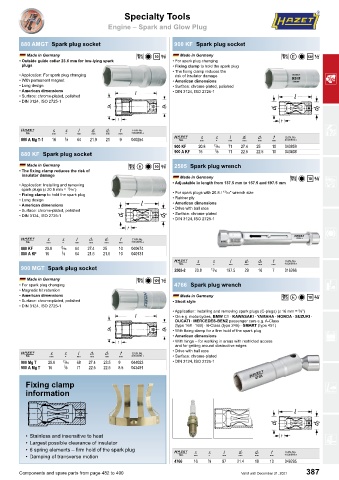

Page 388 - HAZET英文2021

Specialty Tools

Engine – Spark and Glow Plug

880 AMGT Spark plug socket 900 KF Spark plug socket

Made in Germany I c7 Made in Germany I/ c8
• Outside guide collar 23.6 mm for low-lying spark • For spark plug changing
plugs • Fixing clamp to hold the spark plug
• The fixing clamp reduces the
• Application: For spark plug changing risk of insulator damage
• With permanent magnet • American dimensions G
• Long design • Surface: chrome-plated, polished
• American dimensions • DIN 3124, ISO 2725-1
• Surface: chrome-plated, polished
• DIN 3124, ISO 2725-1

1 S T K G H c 4 F

880 A Mg T-1 16 5 ⁄8 64 21.9 21 9 040254 1 S T K G H c 4
900 KF 20.8 13 ⁄16 71 27.4 25 10 043859
880 KF Spark plug socket 900 A KF 16 5 ⁄8 71 22.5 22.5 10 043408

Made in Germany I/ c7 2505 Spark plug wrench
• The fixing clamp reduces the risk of
insulator damage Made in Germany I c7
• Adjustable in length from 137.5 mm to 157.5 and 197.5 mm D
• Application: Installing and removing
spark plugs (Ä 20.8 mm = ⁄16˝) 13
13
• Fixing clamp to hold the spark plug • For spark plugs with 20.8 / /16″ wrench size
• Long design • Rubber ply
• American dimensions • American dimensions
• Surface: chrome-plated, polished • Drive with ball race
• DIN 3124, ISO 2725-1 • Surface: chrome-plated
• DIN 3124, ISO 2725-1
R
1 S T K G H c 4

880 KF 20.8 13 ⁄16 64 27.4 25 10 040674
880 A KF 16 5 ⁄8 64 21.6 21.6 10 040131
1 S T K G H c 4
900 MGT Spark plug socket 2505-2 20.8 13 ⁄16 197.5 29 16 7 016266

Made in Germany I c8
• For spark plug changing 4766 Spark plug wrench C
• Magnetic bit retention
• American dimensions Made in Germany I/ c7
• Surface: chrome-plated, polished • Short style
• DIN 3124, ISO 2725-1
5
• Application: Installing and removing spark plugs (C-plugs) (Ä 16 mm = ⁄8″)
• On e.g. motorcycles, BMW C1 ∙ KAWASAKI ∙ YAMAHA ∙ HONDA ∙ SUZUKI ∙
DUCATI ∙ MERCEDES-BENZ passenger cars e.g. A-Class
(type 168 ∙ 169) ∙ B-Class (type 245) ∙ SMART (type 451)
• With fixing clamp for a firm hold of the spark plug
• American dimensions O
• With hinge – for working in areas with restricted access
and for getting around obstructive edges
1 S T K G H c 4 • Drive with ball race
• Surface: chrome-plated
900 Mg T 20.8 13 ⁄16 68 27.4 23.5 9 044023 • DIN 3124, ISO 2725-1
900 A Mg T 16 5 ⁄8 71 22.5 22.5 8.5 043491

Fixing clamp A
information

• Stainless and insensitive to heat
• Largest possible clearance of insulator U
• 6 spring elements – firm hold of the spark plug 1 4
• Damping of transverse motion S T K G H c
4766 16 5 ⁄8 97 21.4 18 10 049295

Components and spare parts from page 482 to 490 Valid until December 31, 2021 387
