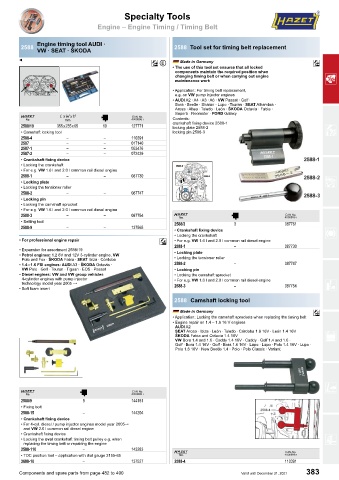

Page 384 - HAZET英文2021

Specialty Tools

Engine – Engine Timing / Timing Belt

2588 Engine timing tool AUDI ∙ 2588 Tool set for timing belt replacement
VW ∙ SEAT ∙ ŠKODA
C
ß/ Made in Germany ß
• The use of this tool set ensures that all locked
components maintain the required position when
changing timing belt or when carrying out engine G
maintenance work
• Application: For timing belt replacement,
e.g. on VW pump injector engines
• AUDI A2 ∙ A4 ∙ A3 ∙ A6 ∙ VW Passat ∙ Golf ∙
Bora ∙ Beetle ∙ Sharan ∙ Lupo ∙ Touran ∙ SEAT Alhambra ∙
Arosa ∙ Altea ∙ Toledo ∙ León ∙ ŠKODA Octavia ∙ Fabia ∙
Superb ∙ Roomster ∙ FORD Galaxy
1 L x W x H è 4 Contents:
mm
2588/19 355 x 235 x 65 19 127771 crankshaft fixing device 2588-1
locking plate 2588-2
• Camshaft locking tool locking pin 2588-3 F
2588-4 – – 110391
2587 – – 017140
2587-1 – – 053476
2587-2 – – 072439
• Crankshaft fixing device
• Locking the crankshaft
• For e.g. VW 1.6 l and 2.0 l common rail diesel engine
2588-1 – – 087730
• Locking plate D
• Locking the tensioner roller
2588-2 – – 087747
• Locking pin
• Locking the camshaft sprocket
• For e.g. VW 1.6 l and 2.0 l common rail diesel engine
2588-3 – – 087754 1 è 4
• Setting tool 2588/3 3 087761
2588-9 – – 137565
• Crankshaft fixing device
• Locking the crankshaft R
• For professional engine repair ß • For e.g. VW 1.6 l and 2.0 l common rail diesel engine
• Expansion for assortment 2588/19 2588-1 – 087730
• Locking plate
• Petrol engines: 1.2 6V and 12V 3-cylinder engine, VW
Polo and Fox ∙ ŠKODA Fabia ∙ SEAT Ibiza ∙ Córdoba • Locking the tensioner roller
• 1.4 – 1.6 FSI engines: AUDI A3 ∙ ŠKODA Octavia ∙ 2588-2 – 087747
VW Polo ∙ Golf ∙ Touran ∙ Tiguan ∙ EOS ∙ Passat • Locking pin
• Diesel engines: VW and VW group vehicles • Locking the camshaft sprocket
4-cylinder engines with pump injector • For e.g. VW 1.6 l and 2.0 l common rail diesel engine
technology model year 2005 → 2588-3 – 087754 C
• Soft foam insert
2588 Camshaft locking tool

Made in Germany ß
• Application: Locking the camshaft sprockets when replacing the timing belt
• Engine repair on 1.4 – 1.6 16 V engines
AUDI A2
SEAT Arosa ∙ Ibiza ∙ León ∙ Toledo ∙ Córdoba 1.6 16V ∙ León 1.4 16V
ŠKODA Fabia and Octavia 1.4 16V O
VW Bora 1.4 and 1.6 ∙ Caddy 1.4 16V ∙ Caddy ∙ Golf 1.4 and 1.6 ∙
Golf ∙ Bora 1.4 16V ∙ Golf ∙ Bora 1.6 16V ∙ Lupo ∙ Lupo ∙ Polo 1.4 16V ∙ Lupo ∙
Polo 1.6 16V ∙ New Beetle 1.4 ∙ Polo ∙ Polo Classic ∙ Variant

1 è 4 A

2588/9 9 144181
• Fixing bolt
2588-15 – 144204
• Crankshaft fixing device
• For 4-cyl. diesel / pump injector engines model year 2005→
and VW 2.0 l common rail diesel engine
• Crankshaft fixing device
• Locking the oval crankshaft timing belt pulley e.g. when U
replacing the timing belt or repairing the engine
2588-110 – 143283 1 4
• TDC position tool – application with dial gauge 2155-65
3688-10 – 137527 2588-4 110391
