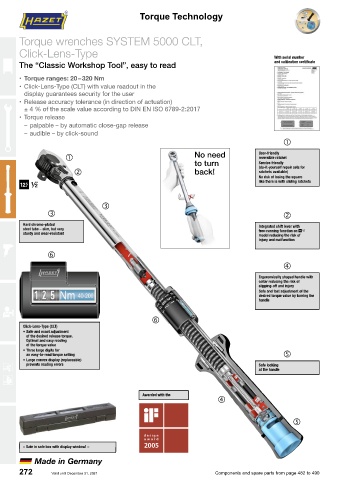

Page 273 - HAZET英文2021
P. 273
Torque Technology Torque Technology
Torque wrenches SYSTEM 5000 CLT,
Click-Lens-Type With serial number
The “Classic Workshop Tool”, easy to read and calibration certificate
• Torque ranges: 20 – 320 Nm
• Click-Lens-Type (CLT) with value readout in the
display guarantees security for the user
• Release accuracy tolerance (in direction of actuation)
± 4 % of the scale value according to DIN EN ISO 6789-2:2017
• Torque release
– palpable – by automatic close-gap release
– audible – by click-sound
No need User-friendly
reversible ratchet
to turn Service friendly
back! (do-it-yourself repair sets for
ratchets available)
No risk of losing the square
3 like there is with sliding ratchets
Hard chrome-plated Integrated shift lever with
steel tube – slim, but very free-running function on 3
sturdy and wear-resistant model reducing the risk of
injury and malfunction
Ergonomically shaped handle with
collar reducing the risk of
slipping-off and injury
Safe and fast adjustment of the
desired torque value by turning the
handle
Click-Lens-Type (CLT)
• Safe and exact adjustment
of the desired release torque.
Optimal and easy reading
of the torque value
• Three large digits for
an easy-to-read torque setting
• Large convex display (replaceable)
prevents reading errors Safe locking
at the handle
Awarded with the
– Safe in safe box with display window! –
Made in Germany
272 Valid until December 31, 2021 Components and spare parts from page 482 to 490
