Torque Technology
Quality through and through

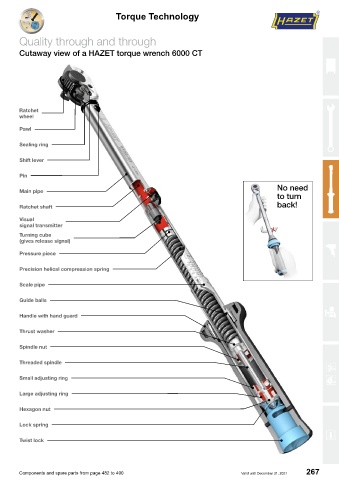

Cutaway view of a HAZET torque wrench 6000 CT
Ratchet
wheel
Pawl
Sealing ring
Shift lever
Pin
No need
Main pipe
to turn
back!
Ratchet shaft
Visual
signal transmitter
Turning cube
(gives release signal)
Pressure piece
Precision helical compression spring
Scale pipe
Guide balls
Handle with hand guard
Thrust washer
Spindle nut
Threaded spindle
Small adjusting ring
Large adjusting ring
Hexagon nut
Lock spring
Twist lock
Components and spare parts from page 482 to 490 Valid until December 31, 2021 267
