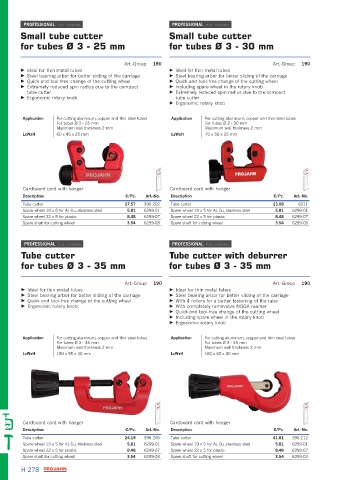

PROFESSIONAL PLUS STANDARD PROFESSIONAL PLUS STANDARD
Small tube cutter Small tube cutter
for tubes Ø 3 - 25 mm for tubes Ø 3 - 30 mm

Art.-Group 190 Art.-Group 190
▶ Ideal for thin metal tubes ▶ Ideal for thin metal tubes
▶ Steel bearing arbor for better sliding of the carriage ▶ Steel bearing arbor for better sliding of the carriage
▶ Quick and tool-free change of the cutting wheel ▶ Quick and tool-free change of the cutting wheel
▶ Extremely reduced spin radius due to the compact ▶ Including spare wheel in the rotary knob
tube cutter ▶ Extremely reduced spin radius due to the compact
▶ Ergonomic rotary knob tube cutter
▶ Ergonomic rotary knob

Application For cutting aluminum, copper and thin steel tubes Application For cutting aluminum, copper and thin steel tubes
For tubes Ø 3 - 25 mm For tubes Ø 3 - 30 mm
Maximum wall thickness 2 mm Maximum wall thickness 2 mm
LxWxH 60 x 45 x 25 mm LxWxH 70 x 50 x 25 mm

Cardboard card with hanger Cardboard card with hanger
Description €/Pc. Art.-No. Description €/Pc. Art.-No.
Tube cutter 17.57 396 202 Tube cutter 23.08 6211
Spare wheel 19 x 5 for Al, Cu, stainless steel 5.81 6299-01 Spare wheel 19 x 5 for Al, Cu, stainless steel 5.81 6299-01
Spare wheel 22 x 5 for plastic 8.48 6299-07 Spare wheel 22 x 5 for plastic 8.48 6299-07
Spare shaft for cutting wheel 3.54 6299-03 Spare shaft for cutting wheel 3.54 6299-03

PROFESSIONAL PLUS STANDARD PROFESSIONAL PLUS STANDARD
Tube cutter Tube cutter with deburrer
for tubes Ø 3 - 35 mm for tubes Ø 3 - 35 mm

Art.-Group 190 Art.-Group 190
▶ Ideal for thin metal tubes ▶ Ideal for thin metal tubes
▶ Steel bearing arbor for better sliding of the carriage ▶ Steel bearing arbor for better sliding of the carriage
▶ Quick and tool-free change of the cutting wheel ▶ With 4 rollers for a better fastening of the tube
▶ Ergonomic rotary knob ▶ With completely removable NOGA reamer
▶ Quick and tool-free change of the cutting wheel
▶ Including spare wheel in the rotary knob
▶ Ergonomic rotary knob

Application For cutting aluminum, copper and thin steel tubes Application For cutting aluminum, copper and thin steel tubes
For tubes Ø 3 - 35 mm For tubes Ø 3 - 35 mm
Maximum wall thickness 2 mm Maximum wall thickness 2 mm
LxWxH 150 x 55 x 40 mm LxWxH 160 x 60 x 30 mm

Cardboard card with hanger Cardboard card with hanger
Description €/Pc. Art.-No. Description €/Pc. Art.-No.
Tube cutter 24.19 396 205 Tube cutter 41.81 396 212
Spare wheel 19 x 5 for Al, Cu, stainless steel 5.81 6299-01 Spare wheel 19 x 5 for Al, Cu, stainless steel 5.81 6299-01
Spare wheel 22 x 5 for plastic 8.48 6299-07 Spare wheel 22 x 5 for plastic 8.48 6299-07
Spare shaft for cutting wheel 3.54 6299-03 Spare shaft for cutting wheel 3.54 6299-03
H 278
