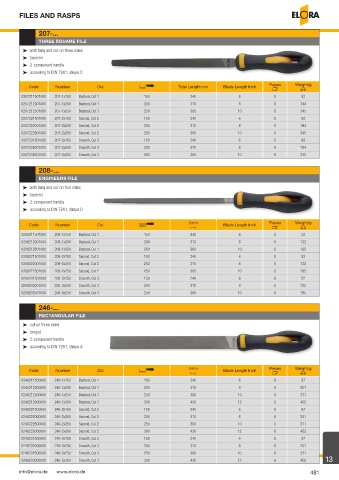

Page 481 - ELORA-Tool_Catalogue_E95

FILES AND RASPS

207-...
THREE SQUARE FILE

³ with tang and cut on three sides
³ tapered
³ 2-component handle
³ according to DIN 7261, shape C

Code Number Cut S Total Length mm Blade Length Inch Pieces Weight/g
V
U
0207211501000 207-1x150 Bastard, Cut 1 150 240 6 6 82
0207212001000 207-1x200 Bastard, Cut 1 200 310 8 6 184
0207212501000 207-1x250 Bastard, Cut 1 250 360 10 6 345
0207221501000 207-2x150 Second, Cut 2 150 240 6 6 82
0207222001000 207-2x200 Second, Cut 2 200 310 8 6 184
0207222501000 207-2x250 Second, Cut 2 250 360 10 6 345
0207231501000 207-3x150 Smooth, Cut 3 150 240 6 6 82
0207232001000 207-3x200 Smooth, Cut 3 200 310 8 6 184
0207232501000 207-3x250 Smooth, Cut 3 250 360 10 6 345

208-...
ENGINEERS FILE

³ with tang and cut on four sides
³ tapered
³ 2-component handle
³ according to DIN 7261, shape D

Code Number Cut S l/mm Blade Length Inch Pieces Weight/g
V
U
T
0208211501000 208-1x150 Bastard, Cut 1 150 240 6 6 52
0208212001000 208-1x200 Bastard, Cut 1 200 310 8 6 122
0208212501000 208-1x250 Bastard, Cut 1 250 360 10 6 195
0208221501000 208-2x150 Second, Cut 2 150 240 6 6 52
0208222001000 208-2x200 Second, Cut 2 200 310 8 6 122
0208222501000 208-2x250 Second, Cut 2 250 360 10 6 195
0208231501000 208-3x150 Smooth, Cut 3 150 240 6 6 52
0208232001000 208-3x200 Smooth, Cut 3 200 310 8 6 122
0208232501000 208-3x250 Smooth, Cut 3 250 360 10 6 195
246-...
RECTANGULAR FILE

³ cut on three sides
³ tanged
³ 2-component handle
³ according to DIN 7261, shape A

Code Number Cut S l/mm Blade Length Inch Pieces Weight/g
T
V
U
0246211500000 246-1x150 Bastard, Cut 1 150 240 6 6 87
0246212000000 246-1x200 Bastard, Cut 1 200 310 8 6 201
0246212500000 246-1x250 Bastard, Cut 1 250 360 10 6 311
0246213000000 246-1x300 Bastard, Cut 1 300 430 12 6 452
0246221500000 246-2x150 Second, Cut 2 150 240 6 6 87
0246222000000 246-2x200 Second, Cut 2 200 310 8 6 201
0246222500000 246-2x250 Second, Cut 2 250 360 10 6 311
0246223000000 246-2x300 Second, Cut 2 300 430 12 6 452
0246231500000 246-3x150 Smooth, Cut 3 150 240 6 6 87
0246232000000 246-3x200 Smooth, Cut 3 200 310 8 6 201
0246232500000 246-3x250 Smooth, Cut 3 250 360 10 6 311
0246233000000 246-3x300 Smooth, Cut 3 300 430 12 6 452 13

info@elora.de www.elora.de 481
