258...

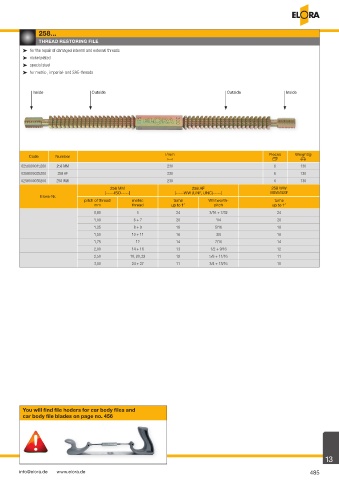

THREAD RESTORING FILE

³ for the repair of damaged internal and external threads
³ nickel plated
³ special steel
³ for metric-, imperial- and SAE-threads

Inside Outside Outside Inside

Code Number l/mm Pieces Weight/g
T U V
0258000015200 258 MM 230 6 130
0258000025200 258 AF 230 6 130
0258000035200 258 WW 230 6 130
258 MM 258 AF 258 WW
|-----ISO-----| |-----WW (UNF, UNC)-----| BSW/BSF
Elora-Nr.
pitch of thread metric turns Whitworth- turns
mm thread up to 1‘‘ pitch up to 1‘‘
0,80 5 24 3/16 + 7/32 24
1,00 6 + 7 20 1/4 20
1,25 8 + 9 18 5/16 18
1,50 10 + 11 16 3/8 16
1,75 12 14 7/16 14
2,00 14 + 16 13 1/2 + 9/16 12
2,50 18, 20, 22 12 5/8 + 11/16 11
3,00 24 + 27 11 3/4 + 13/16 10

You will find file hoders for car body files and
car body file blades on page no. 456
