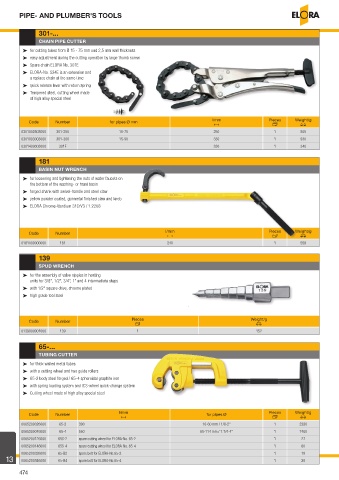

P. 474

PIPE- AND PLUMBER'S TOOLS


               301-...
               CHAIN PIPE CUTTER

         ³   for cutting tubes from Ø 15 - 75 mm und 2,5 mm wall thickness
         ³   easy adjustment during the cutting operation by large thumb screw
         ³   Spare chain ELORA No. 301E
         ³   ELORA-No. 524E is an extension and
            a replace chain at the same time
         ³   quick release lever with return spring
         ³   Tempered steel, cutting wheel made
            of high alloy special steel



           Code      Number             for pipes Ø mm                     l/mm                Pieces    Weight/g
                                                                            T                    U         V
         0301002503000  301-250            15-75                            250                  1         805
         0301003003000  301-300            15-90                            330                  1         930
         0301400003000  301E                                                330                  1         340
               181
               BASIN NUT WRENCH

         ³   for loosening and tightening the nuts of water faucets on
            the bottom of the washing- or hand basin
         ³   forged shank with swivel-handle and steel claw
         ³   yellow powder coated, gunmetal finished claw and knob
         ³   ELORA Chrome-Vandium 31CrV3 / 1.2208




           Code      Number                                l/mm                                Pieces    Weight/g
                                                            T                                    U         V
         0181000000000  181                                 240                                  1         558

               139
               SPUD WRENCH
         ³   for the assembly of valve nipples in heating
            units for 3/8“, 1/2“, 3/4“, 1“ and 4 intermediate steps
         ³   with 1/2“ square drive, chrome plated
         ³   high grade tool steel




           Code      Number                    Pieces                                    Weight/g
                                                 U                                         V
         0139000001000  139                      1                                         152

               65-...
               TUBING CUTTER
         ³   for thick-walled metal tubes
         ³   with a cutting wheel and two guide rollers
         ³   65-2 body steel forged / 65-4 spheroidal graphite iron
         ³   with spring loading system and ICS-wheel quick-change system
         ³   Cutting wheel made of high alloy special steel


           Code      Number                l/mm                           for pipes Ø          Pieces    Weight/g
                                            T                                                    U         V
         0065200026000  65-2  390                                       10-60 mm / 1/8-2“        1        2320
         0065200046000  65-4  560                                      60-114 mm / 1.1/4-4“      1        7460
         0065200126000  65S-2  spare cutting wheel for ELORA-No. 65-2                            1         27
         0065200146000  65S-4  spare cutting wheel for ELORA-No. 65-4                            1         66
         0065200326000  65-B2  spare bolt for ELORA-No.65-2                                      1         19
   13    0065200346000  65-B4  spare bolt for ELORA-No.65-4                                      1         28

        474
