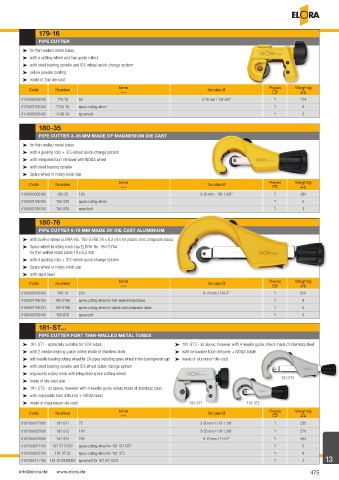

Page 475 - ELORA-Tool_Catalogue_E95

179-16
PIPE CUTTER

³ for thin-walled metal tubes
³ with a cutting wheel and two guide rollers
³ with steel bearing spindle and ICS-wheel quick-change system
³ yellow powder coating
³ made of zinc die-cast
Code Number l/mm for pipe Ø Pieces Weight/g
T U V
0179000166100 179-16 55 3-16 mm / 1/8-5/8‘‘ 1 114
0179001166100 179S-16 spare cutting wheel 1 6
0179002166100 179B-16 spare bolt 1 3

180-35
PIPE CUTTER 3-36 MM MADE OF MAGNESIUM DIE CAST
³ for thin-walled metal tubes
³ with 4 guiding rolls + ICS-wheel quick-change system
³ with integrated burr remover with NOGA wheel
³ with steel bearing spindle
³ Spare wheel in rotary knob cap
Code Number l/mm for pipe Ø Pieces Weight/g
T U V
0180000356100 180-35 160 3-36 mm - 1/8-1.3/8‘‘ 1 380
0180001356100 180-S35 spare cutting wheel 1 5
0180002356100 180-B35 spare bolt 1 3

180-76
PIPE CUTTER 6-76 MM MADE OF DIE CAST ALUMINIUM
³ with built-in wheel ELORA-No. 180-S76B 30 x 6,2 mm for plastic and composite tubes
³ Spare wheel in rotary knob cap ELORA-No. 180-S76A
for thin-walled metal tubes 19 x 6,2 mm
³ with 4 guiding rolls + ICS-wheel quick-change system
³ Spare wheel in rotary knob cap
³ with rapid feed
Code Number l/mm for pipe Ø Pieces Weight/g
T U V
0180000766100 180-76 250 6-76 mm / 1/4-3‘‘ 1 970
0180001766100 180-S76A spare cutting wheel for thin-walled metal tubes 1 9
0180001766101 180-S76B spare cutting wheel for plastic and composite tubes 1 6
0180002766100 180-B76 spare bolt 1 3

181-ST...
PIPE CUTTER FORT THIN-WALLED METAL TUBES
³ 181-ST1 - especially suitable for V2A tubes ³ 181-ST3 - as above, however with 4 needle guide rollers made of stainless steel
³ with 2 needle bearing guide rollers made of stainless steel ³ with removable tube deburrer + NOGA blade
³ with needle bearing cutting wheel for 2A pipes including spare wheel in the turning knob cap ³ made of aluminium die-cast
³ with steel bearing spindle and ICS wheel quick-change system
³ ergonomic rotary knob with integrated spare cutting wheel
181-ST3
³ made of die-cast zinc
³ 181-ST2 - as above, however with 4 needle guide rollers made of stainless steel
³ with removable tube deburrer + NOGA blade
³ made of magnesium die-cast 181-ST1 181-ST2
Code Number l/mm for pipe Ø Pieces Weight/g
T U V
0181000017000 181-ST1 75 3-30 mm / 1/8-1.1/8‘‘ 1 235
0181000027000 181-ST2 160 3-35 mm / 1/8-1.3/8‘‘ 1 376
0181000037000 181-ST3 250 6-76 mm / 1/4-3‘‘ 1 983
0181000017100 181-ST S1/S2 spare cutting wheel for 181-ST1/ST2 1 5
0181000037100 181-ST S3 spare cutting wheel for 181-ST3 1 6
0181000117100 181-ST B1/B2/B3 spare bolt for 181-ST 1/2/3 1 3 13
