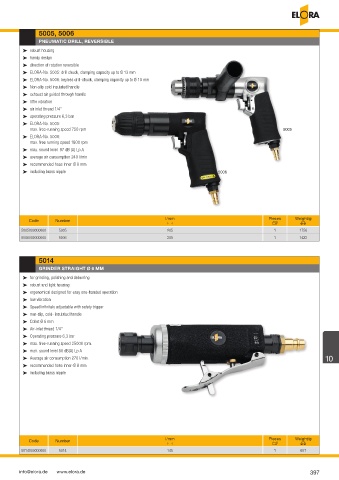

Page 397 - ELORA-Tool_Catalogue_E95

5005, 5006
PNEUMATIC DRILL, REVERSIBLE

³ robust housing
³ handy design
³ direction of rotation reversible
³ ELORA-No. 5005: drill chuck, clamping capacity up to Ø 13 mm
³ ELORA-No. 5006: keyless drill-chuck, clamping capacity up to Ø 10 mm
³ Non-slip cold insulated handle
³ exhaust air guided through handle
³ little vibration
³ air inlet thread 1/4‘‘
³ operating pressure 6,3 bar
³ ELORA-No. 5005:
max. free-running speed 750 rpm 5005
³ ELORA-No. 5006:
max. free running speed 1800 rpm
³ max. sound level 87 dB (A) Lp A
³ average air consumption 240 l/min
³ recommended hose inner-Ø 8 mm
³ including brass nipple 5006

Code Number l/mm Pieces Weight/g
T U V
5005000000000 5005 205 1 1756
5006000000000 5006 205 1 1422

5014
GRINDER STRAIGHT Ø 6 MM
³ for grinding, polishing and deburring
³ robust and light housing
³ ergonomical designed for easy one-handed operation
³ low vibration
³ Speed infinitely adjustable with safety trigger
³ non-slip, cold- insulated handle
³ Collet Ø 6 mm
³ Air-inlet thread 1/4‘‘
³ Operating pressure 6,3 bar
³ max. free-running speed 25000 rpm.
³ max. sound level 86 dB(A) Lp A
³ Average air consumption 270 l/min. 10
³ recommended hose inner-Ø 8 mm
³ including brass nipple

Code Number l/mm Pieces Weight/g
T U V
5014000000000 5014 145 1 651

info@elora.de www.elora.de 397
