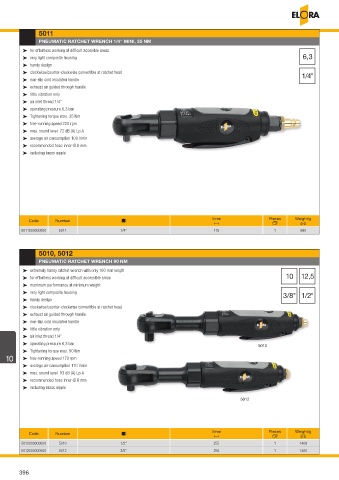

Page 396 - ELORA-Tool_Catalogue_E95

5011
PNEUMATIC RATCHET WRENCH 1/4‘‘ MINI, 35 NM

³ for effortless working at difficult accesible areas
³ very light composite housing 6,3
³ handy design
³ clockwise/counter-clockwise convertible at ratchet head 1/4"
³ non-slip cold insulated handle
³ exhaust air guided through handle
³ little vibration only
³ air inlet thread 1/4‘‘
³ operating pressure 6,3 bar
³ Tightening torque max. 35 Nm
³ free-running speed 220 rpm
³ max. sound level 72 dB (A) Lp A
³ average air consumption 100 l/min
³ recommended hose inner-Ø 8 mm
³ including brass nipple

Code Number l/mm Pieces Weight/g
T U V
5011000000000 5011 1/4‘‘ 175 1 680

5010, 5012
PNEUMATIC RATCHET WRENCH 90 NM
³ extremely handy ratchet wrench with only 160 mm length
³ for effortless working at difficult accessible areas 10 12,5
³ maximum performance at minimum weight
³ very light composite housing 3/8" 1/2"
³ handy design
³ clockwise/counter-clockwise convertible at ratchet head
³ exhaust air guided through handle
³ non-slip cold insulated handle
³ little vibration only
³ air inlet thread 1/4‘‘
³ operating pressure 6,3 bar 5010
³ Tightening torque max. 90 Nm
10 ³ free-running speed 170 rpm
³ average air consumption 170 l/min
³ max. sound level 93 dB (A) Lp A
³ recommended hose inner-Ø 8 mm
³ including brass nipple

5012

Code Number l/mm Pieces Weight/g
T U V
5010000000000 5010 1/2‘‘ 255 1 1409
5012000000000 5012 3/8‘‘ 255 1 1400

396
