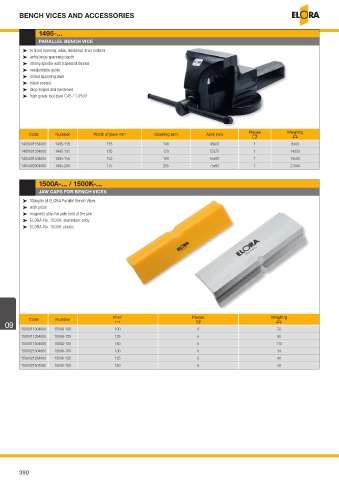

Page 390 - ELORA-Tool_Catalogue_E95

BENCH VICES AND ACCESSORIES

1495-...
PARALLEL BENCH VICE

³ to front opening, wide, hardened anvil surface
³ extra large spanning depth
³ strong spindle with trapezoid thread
³ readjustable guide
³ milled spanning jaws
³ black coated
³ drop forged and hardened
³ high grade tool steel C45 / 1.0503

Code Number Width of jaws mm Opening mm Anvil mm Pieces Weight/g
U V
1495001154000 1495-115 115 140 45x63 1 8400
1495001354000 1495-135 135 170 57x75 1 14350
1495001504000 1495-150 150 190 65x80 1 19500
1495002004000 1495-200 175 205 75x93 1 27000

1500A-... / 1500K-...
JAW CAPS FOR BENCH VICES

³ fitting to all ELORA Parallel Bench Vices
³ with prism
³ magnetic strip for safe hold at the jaw
³ ELORA-No. 1500A: aluminium-alloy
³ ELORA-No. 1500K: plastic

l/mm Pieces Weight/g
Code Number T
09 U V
1500011004000 1500A-100 100 6 72
1500011254000 1500A-125 125 6 90
1500011504000 1500A-150 150 6 110
1500021004000 1500K-100 100 6 34
1500021254000 1500K-125 125 6 40
1500021504000 1500K-150 150 6 48

390
