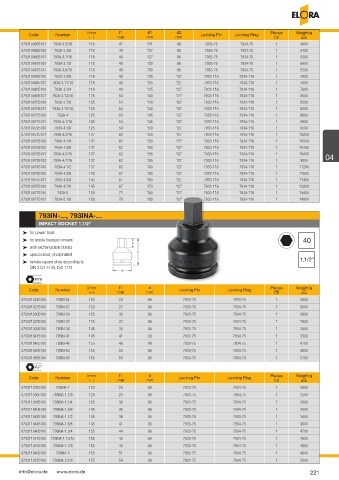

Page 221 - ELORA-Tool_Catalogue_E95

Code Number l/mm l1 d1 d2 Locking Pin Locking Ring Pieces Weight/g
T mm mm mm U V
0793100655101 793A-3.5/16 116 47 121 86 7933-75 7934-75 1 4800
0793100665100 793A-3.3/8 116 49 127 86 7933-75 7934-75 1 5400
0793100665101 793A-3.7/16 118 49 127 86 7933-75 7934-75 1 5300
0793100675100 793A-3.1/2 118 49 130 86 7933-75 7934-75 1 5600
0793100675101 793A-3.9/16 118 49 130 86 7933-75 7934-75 1 5300
0793100685100 793A-3.5/8 118 49 135 127 7933-116 7934-116 1 7800
0793100685101 793A-3.11/16 118 49 135 127 7933-116 7934-116 1 7600
0793100695100 793A-3.3/4 118 49 135 127 7933-116 7934-116 1 7600
0793100695101 793A-3.13/16 125 54 140 127 7933-116 7934-116 1 8500
0793100705100 793A-3.7/8 125 54 140 127 7933-116 7934-116 1 8500
0793100705101 793A-3.15/16 125 54 140 127 7933-116 7934-116 1 8200
0793100715100 793A-4 125 54 145 127 7933-116 7934-116 1 8800
0793100715101 793A-4.1/16 125 54 145 127 7933-116 7934-116 1 8600
0793100725100 793A-4.1/8 125 54 150 127 7933-116 7934-116 1 9500
0793100725101 793A-4.3/16 137 62 150 127 7933-116 7934-116 1 10200
0793100735100 793A-4.1/4 137 62 150 127 7933-116 7934-116 1 10000
0793100735102 793A-4.3/8 137 62 155 127 7933-116 7934-116 1 10400
0793100735101 793A-4.5/16 137 62 155 127 7933-116 7934-116 1 10600 04
0793100735103 793A-4.7/16 137 62 155 127 7933-116 7934-116 1 9800
0793100745100 793A-4.1/2 137 62 160 127 7933-116 7934-116 1 11200
0793100755100 793A-4.5/8 143 67 165 127 7933-116 7934-116 1 11600
0793100755101 793A-4.3/4 145 67 165 127 7933-116 7934-116 1 11400
0793100765100 793A-4.7/8 145 67 170 127 7933-116 7934-116 1 12200
0793100775100 793A-5 150 72 180 127 7933-116 7934-116 1 14400
0793100775101 793A-5.1/8 158 76 180 127 7933-116 7934-116 1 14800

793IN-..., 793INA-...
IMPACT SOCKET 1.1/2"
³ for power tools
³ for inside hexagon screws 40
³ with exchangeable blades
³ special steel, phosphated
³ female square drive according to 1.1/2"
DIN 3121-H 40, ISO 1174

Code Number l/mm l1 d Locking Pin Locking Ring Pieces Weight/g
T mm mm U V
0793010245100 793IN-24 120 24 86 7933-75 7934-75 1 2600
0793010275100 793IN-27 120 27 86 7933-75 7934-75 1 2600
0793010305100 793IN-30 125 30 86 7933-75 7934-75 1 2800
0793010325100 793IN-32 125 32 86 7933-75 7934-75 1 2800
0793010365100 793IN-36 145 36 86 7933-75 7934-75 1 3400
0793010415100 793IN-41 145 41 86 7933-75 7934-75 1 3520
0793010465100 793IN-46 155 46 86 7933-75 7934-75 1 4700
0793010505100 793IN-50 155 50 86 7933-75 7934-75 1 4900
0793010555100 793IN-55 155 55 86 7933-75 7934-75 1 5100

Code Number l/mm l1 d Locking Pin Locking Ring Pieces Weight/g
T mm mm U V
0793110345100 793INA-1 120 25 86 7933-75 7934-75 1 2600
0793110365100 793INA-1.1/8 120 28 86 7933-75 7934-75 1 2500
0793110385100 793INA-1.1/4 125 32 86 7933-75 7934-75 1 2600
0793110405100 793INA-1.3/8 145 35 86 7933-75 7934-75 1 3500
0793110425100 793INA-1.1/2 145 38 86 7933-75 7934-75 1 3400
0793110445100 793INA-1.5/8 145 41 86 7933-75 7934-75 1 3600
0793110465100 793INA-1.3/4 155 44 86 7933-75 7934-75 1 4700
0793110475100 793INA-1.13/16 155 46 86 7933-75 7934-75 1 4600
0793110485100 793INA-1.7/8 155 48 86 7933-75 7934-75 1 4600
0793110495100 793INA-2 155 51 86 7933-75 7934-75 1 4800
0793110515100 793INA-2.1/8 155 54 86 7933-75 7934-75 1 5000

info@elora.de www.elora.de 221
