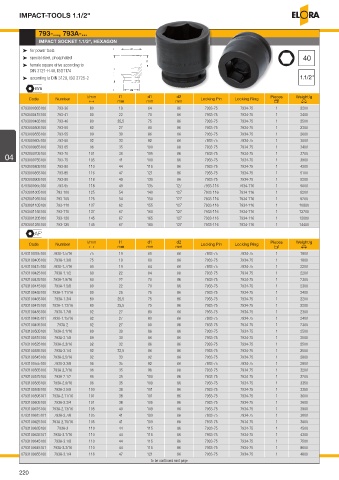

Page 220 - ELORA-Tool_Catalogue_E95
P. 220
IMPACT-TOOLS 1.1/2"
793-..., 793A-...
IMPACT SOCKET 1.1/2", HEXAGON
³ for power tools
³ special steel, phosphated 40
³ female square drive according to
DIN 3121-H 40, ISO1174
³ according to DIN 3129, ISO 2725-2 1.1/2"
Code Number l/mm l1 d1 d2 Locking Pin Locking Ring Pieces Weight/g
T mm mm mm U V
0793000365100 793-36 80 19 64 86 7933-75 7934-75 1 2200
0793000415100 793-41 80 22 70 86 7933-75 7934-75 1 2400
0793000465100 793-46 80 25,5 75 86 7933-75 7934-75 1 2500
0793000505100 793-50 82 27 80 86 7933-75 7934-75 1 2300
0793000555100 793-55 89 30 86 86 7933-75 7934-75 1 2600
0793000605100 793-60 92 33 92 86 7933-75 7934-75 1 3000
0793000655100 793-65 96 35 100 86 7933-75 7934-75 1 3400
04 0793000705100 793-70 101 38 105 86 7933-75 7934-75 1 1 3700
04
41
86
109
7933-75
3900
0793000755100
105
793-75
7934-75
0793000805100 793-80 110 44 115 86 7933-75 7934-75 1 4200
0793000855100 793-85 116 47 121 86 7933-75 7934-75 1 5100
0793000905100 793-90 118 49 130 86 7933-75 7934-75 1 5200
0793000955100 793-95 118 49 135 127 7933-116 7934-116 1 9000
0793001005100 793-100 125 54 140 127 7933-116 7934-116 1 8200
0793001055100 793-105 125 54 150 127 7933-116 7934-116 1 9200
0793001105100 793-110 137 62 155 127 7933-116 7934-116 1 10800
0793001155100 793-115 137 67 160 127 7933-116 7934-116 1 12700
0793001205100 793-120 145 67 165 127 7933-116 7934-116 1 12000
0793001255100 793-125 145 67 180 127 7933-116 7934-116 1 14400
Code Number l/mm l1 d1 d2 Locking Pin Locking Ring Pieces Weight/g
T mm mm mm U V
0793100395100 793A-1.5/16 75 19 60 86 7933-75 7934-75 1 1800
0793100405100 793A-1.3/8 75 19 60 86 7933-75 7934-75 1 1800
0793100415100 793A-1.7/16 80 19 64 86 7933-75 7934-75 1 2200
0793100425100 793A-1.1/2 80 22 64 86 7933-75 7934-75 1 2200
0793100435100 793A-1.9/16 80 22 70 86 7933-75 7934-75 1 2300
0793100445100 793A-1.5/8 80 22 70 86 7933-75 7934-75 1 2300
0793100455100 793A-1.11/16 80 25 75 86 7933-75 7934-75 1 2400
0793100465100 793A-1.3/4 80 25,5 75 86 7933-75 7934-75 1 2200
0793100475100 793A-1.13/16 80 25,5 75 86 7933-75 7934-75 1 2200
0793100485100 793A-1.7/8 82 27 80 86 7933-75 7934-75 1 2300
0793100485101 793A-1.15/16 82 27 80 86 7933-75 7934-75 1 2400
0793100495100 793A-2 82 27 80 86 7933-75 7934-75 1 2300
0793100505100 793A-2.1/16 89 30 86 86 7933-75 7934-75 1 2500
0793100515100 793A-2.1/8 89 30 86 86 7933-75 7934-75 1 2500
0793100525100 793A-2.3/16 92 32 86 86 7933-75 7934-75 1 2500
0793100535100 793A-2.1/4 92 32,5 86 86 7933-75 7934-75 1 2500
0793100545100 793A-2.5/16 92 33 92 86 7933-75 7934-75 1 2800
0793100555100 793A-2.3/8 96 35 92 86 7933-75 7934-75 1 2800
0793100565100 793A-2.7/16 96 35 96 86 7933-75 7934-75 1 3200
0793100575100 793A-2.1/2 96 35 100 86 7933-75 7934-75 1 3200
0793100585100 793A-2.9/16 96 35 100 86 7933-75 7934-75 1 3350
0793100595100 793A-2.5/8 100 38 101 86 7933-75 7934-75 1 3350
0793100595101 793A-2.11/16 101 38 101 86 7933-75 7934-75 1 3600
0793100605100 793A-2.3/4 101 38 105 86 7933-75 7934-75 1 3600
0793100615100 793A-2.13/16 105 40 109 86 7933-75 7934-75 1 3900
0793100615101 793A-2.7/8 105 41 109 86 7933-75 7934-75 1 3800
0793100625100 793A-2.15/16 105 41 109 86 7933-75 7934-75 1 3800
0793100635100 793A-3 110 44 115 86 7933-75 7934-75 1 4500
0793100635101 793A-3.1/16 110 44 115 86 7933-75 7934-75 1 4300
0793100645100 793A-3.1/8 110 44 115 86 7933-75 7934-75 1 7500
0793100645101 793A-3.3/16 110 44 115 86 7933-75 7934-75 1 8600
0793100655100 793A-3.1/4 116 47 121 86 7933-75 7934-75 1 4800
to be continued next page
