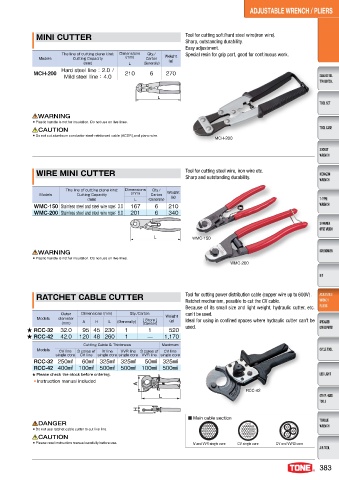

MINI CUTTER Tool for cutting soft/hard steel wire(iron wire).
Sharp, outstanding durability.
Easy adjustment.
The line of cutting plane kind: Dimensions Qty./ Special resin for grip part, good for continuous work.
Models Cutting Capacity (mm) Carton Weight
(g)
(mm) L (Generally)
Hard steel line： 2.0 /
MCH-200 210 6 270
Mild steel line： 4.0

WARNING
● Plastic handle is not for insulation. Do not use on live lines.
CAUTION
● Do not cut aluminum conductor steel-reinforced cable (ACSR),and piano wire.
MCH-200

WIRE MINI CUTTER Tool for cutting steel wire, iron wire etc.
Sharp and outstanding durability.

The line of cutting plane kind: Dimensions Qty./
Models Cutting Capacity (mm) Carton Weight
(g)
(mm) L (Generally)
WMC-150 Stainless steel and steel wire rope： 3.0 167 6 210
WMC-200 Stainless steel and steel wire rope： 6.0 201 6 340

WMC-150
WARNING
● Plastic handle is not for insulation. Do not use on live lines.
WMC-200

RATCHET CABLE CUTTER Tool for cutting power distribution cable (copper wire up to 600V) .
Ratchet mechanism, possible to cut the CV cable.
Because of its small size and light weight, hydraulic cutter, etc.
Outer Dimensions (mm) Qty./Carton can't be used.
Models diameter ( Center) Weight Ideal for using in confined spaces where hydraulic cutter can't be
Store
(g)
(mm) A H L (Generally)
★ RCC-32 32.0 95 45 230 1 1 520 used.
★ RCC-42 42.0 120 48 260 1 — 1,170
Cutting Cable & Thickness Maximum
Models CV line 3 cores of IV line VVR line 3 cores of CV line
single core CV line single core single core VVR line single core
RCC-32 250㎟ 60㎟ 325㎟ 325㎟ 50㎟ 325㎟
RCC-42 400㎟ 100㎟ 500㎟ 500㎟ 100㎟ 500㎟
★ Please check the stock before ordering.
● Instruction manual included
RCC-42
-

˙ .BJO DBCMF TFDUJPO
DANGER
● Do not use ratchet cable cutter to cut live line.
CAUTION
● Please read instruction manual carefully before use. *7 BOE 773 TJOHMF DPSF $7 TJOHMF DPSF $7 BOE 773 DPSF
