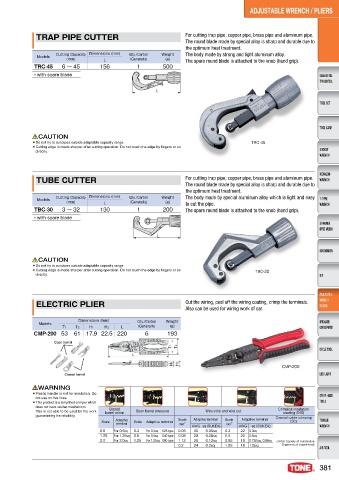

TRAP PIPE CUTTER For cutting trap pipe, copper pipe, brass pipe and aluminum pipe.
The round blade made by special alloy is sharp and durable due to
the optimum heat treatment.
Models Cutting Capacity Dimensions (mm) Qty./Carton Weight The body made by strong and light aluminum alloy.
(mm) L (Generally) (g) The spare round blade is attached to the knob (hand grip).
TRC-45 6～45 156 1 500
● with spare blade

CAUTION
● Do not try to cut pipes outside adaptable capacity range. TRC-45
● Cutting edge is made sharper after cutting operation. Do not touch the edge by fingers or so
directly.

TUBE CUTTER For cutting trap pipe, copper pipe, brass pipe and aluminum pipe.
The round blade made by special alloy is sharp and durable due to
the optimum heat treatment.
Cutting Capacity Dimensions (mm) Qty./Carton Weight The body made by special aluminum alloy which is light and easy
Models
(mm) L (Generally) (g) to cut the pipe.
TBC-30 3～32 130 1 200 The spare round blade is attached to the knob (hand grip).
● with spare blade

CAUTION
● Do not try to cut pipes outside adaptable capacity range.
● Cutting edge is made sharper after cutting operation. Do not touch the edge by fingers or so TBC-30
directly.

ELECTRIC PLIER Cut the wiring, peel off the wiring coating, crimp the terminals.
Also can be used for wiring work of car.

Dimensions (mm) Qty./Carton Weight
Models
T1 T2 H1 H2 L (Generally) (g)
CMP-200 53 61 17.9 22.5 220 6 193
0QFO CBSSFM
5 5
-
) ) CMP-200

$MPTFE CBSSFM
WARNING
● Plastic handle is not for insulation. Do
not use on live lines.
● This product is a simplified crimper which
does not have ratchet mechanism. Closed Crimping insulation
This is not able to be used for the work barrel crimp Open barrel pressure Wire strip and wire cut coating (INS)
guaranteeing the reliability. Coaxial cable crimping
Adaptive terminal
Adaptive terminal
Scale Adaptive Scale Adaptive terminal Scale 2 AWG sq (SUKEA) Scale 2 AWG sq (SUKEA) (3C)
mm
mm
terminal
0.5 For 0.5sq 0.3 For 0.3sq 025 type 0.05 30 0.05sq 0.3 22 0.3sq
1.25 For 1.25sq 0.5 For 0.5sq 040 type 0.08 28 0.08sq 0.5 20 0.5sq
2.0 For 2.0sq 1.25 For 1.25sq 090 type 1.12 26 0.12sq 0.85 18 0.75(f)sq, 0.85sq (JASO Society of Automotive
0.2 24 0.2sq 1.25 16 1.25sq Engineers of JapanHead)
